Lawn Tractors > Sears > ST/16 917.25740

Sears ST/16 917.25740 - transmission

Sears ST/16 917.25740 lawn tractor photo
1973 - 1976
Model years
Garden tractor
more Sears ST/16 917.25740 specifications...






Transmission:

Type:belt-driven gear
Gears:6 forward and 2 reverse
Three gears (1-3) plus reverse (R) with two ranges (low and high).
Speeds:

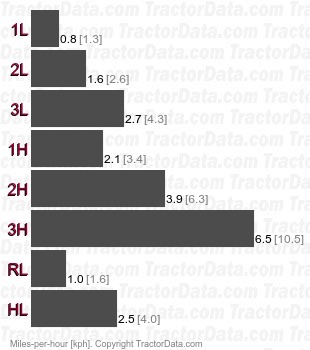

ST/16 917.25740  belt-driven gear speeds

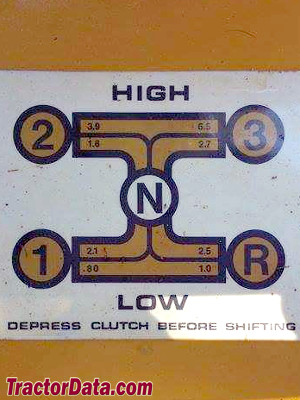

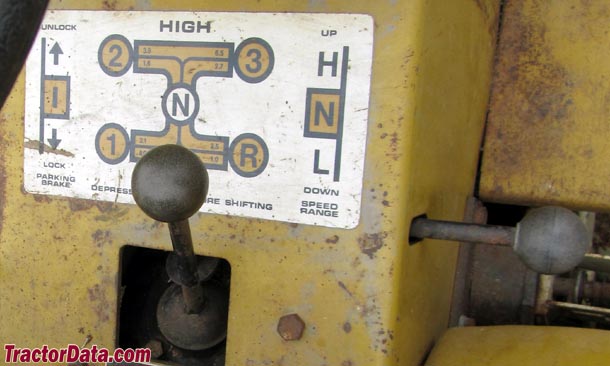

Sears ST/16 917.25740  transmission photo
