Lawn Tractors > John Deere > X739

John Deere X739

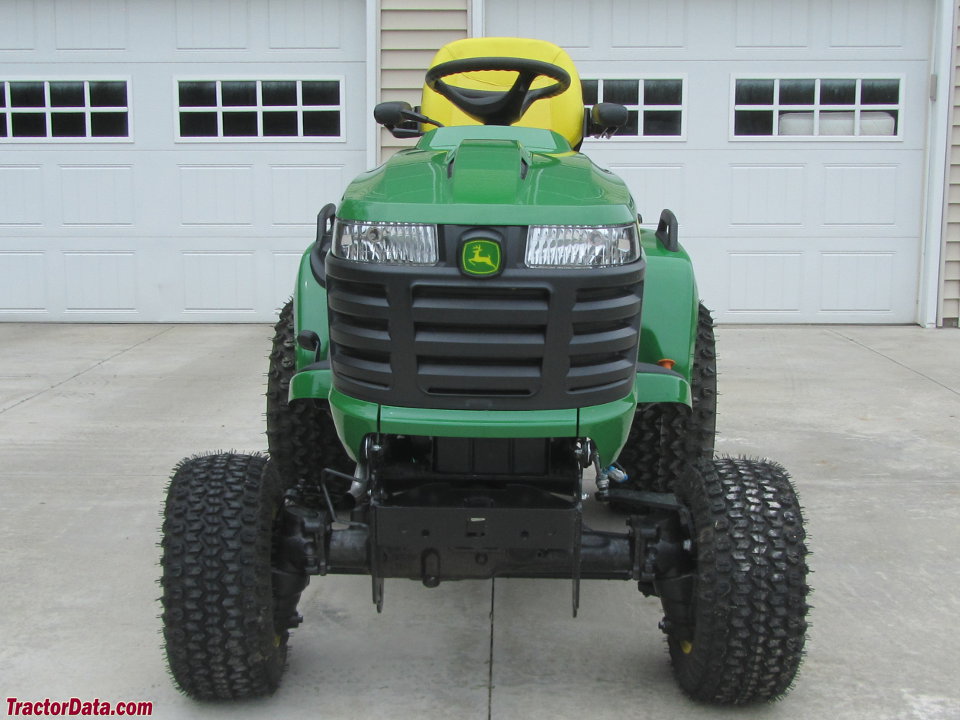

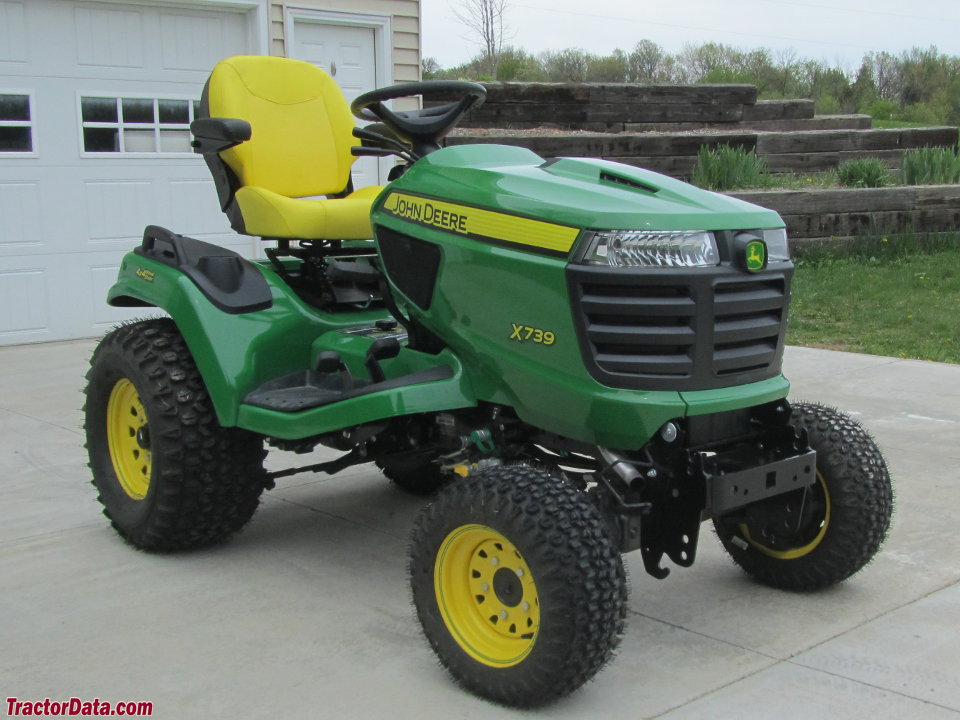

John Deere X739 lawn tractor photo
2013 -    X700 Series
Garden tractor
Previous model:John Deere X729
Series next:John Deere X750
Series back:John Deere X738






Production:

Manufacturer:John Deere
Factory:Horicon, Wisconsin, USA


Variants:

X739:4WD 4-wheel steer
X738:4WD 2-wheel steer
X734:2WD 4-wheel steer
X730:2WD 2-wheel steer


John Deere X739 Engine:

   25.5HP Kawasaki 745cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:5.2 gal [19.7 L]


3-Point Hitch:

Rear Type:0*Optional
 1-limited*Optional


Power Take-off (PTO):

Rear PTO:independent*Optional
Rear RPM:540
Front PTO:independent
Clutch:electro-hydraulic


Dimensions & Tires:

Wheelbase:54.5 inches [138 cm]
Weight:1265 lbs [573 kg]
Front tire:18x8.50-10
Rear tire:26x12-12
full dimensions and tires ...


John Deere X739 attachments:

 48" mid-mount mower deck
 54" mid-mount mower deck
 60" mid-mount mower deck
 snowblower
all X739 attachments ...


X739 Serial Numbers:

Location:Serial number plate on the right side of the tractor frame, below the footrest.
photo of X739 serial number

2013: 010001
2014: 020001

how to read serial numbers...



Mechanical:

Transmission:hydrostatic
Chassis:4x4 HFWD 4WD
Steering:hydrostatic power four-wheel steering
Brakes:internal wet disc
Cab:Open operator station with tilt-back seat. Optional hard cab.


Electrical:

Ground:negative
Charging system:regulated
Charging amps:20


Battery:

Number:1
Volts:12
