    Cub Cadet AGS 2130 - engine

    Cub Cadet AGS 2130 lawn tractor photo
    1994 - 1999   2000 Series
    Lawn tractor
    Larger:Cub Cadet 2135
    more Cub Cadet AGS 2130 specifications...






    Engine Detail:

     Kohler Command
     gasoline
     1-cylinder
     air-cooled
     398 cc [24.29ci ]
    Bore/Stroke:3.4375x2.625 inches [87 x 67 mm]
    Power (gross):12.5 hp [9.3 kW]
    Idle RPM:1400-3600
    Starter:electric
    Starter volts:12
    Oil capacity:2 qts [1.9 L]
    Oil change:100 h
    Sparkplug:759-3336
    Sparkplug gap:0.040 inches [1.016 mm]

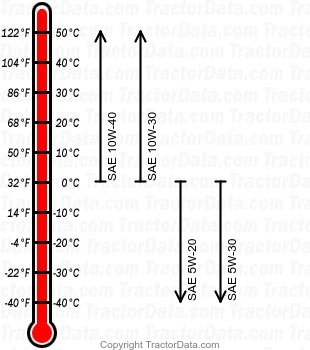

    AGS 2130 gasoline engine oil chart
