Lawn Tractors > Cub Cadet > HDS 2135

Cub Cadet HDS 2135 Engine



Cub Cadet HDS 2135 tractor photo
1994 - 1998
2000 Series
Lawn tractor
Series map:
2130
2135
2140
12.5hp
12.5hp
14.0hp
Engine Detail
Kohler CH12.5
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement398 cc
24.29 ci
Bore/Stroke3.4375x2.625 inches
87 x 67 mm
Power (gross)12.5 hp
9.3 kW
Idle RPM1400-3600
Starterelectric
Starter volts12
Sparkplug759-3336
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

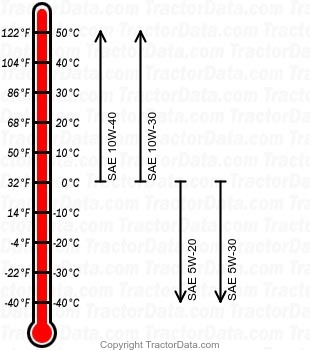

HDS 2135 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
