Cub Cadet 1529

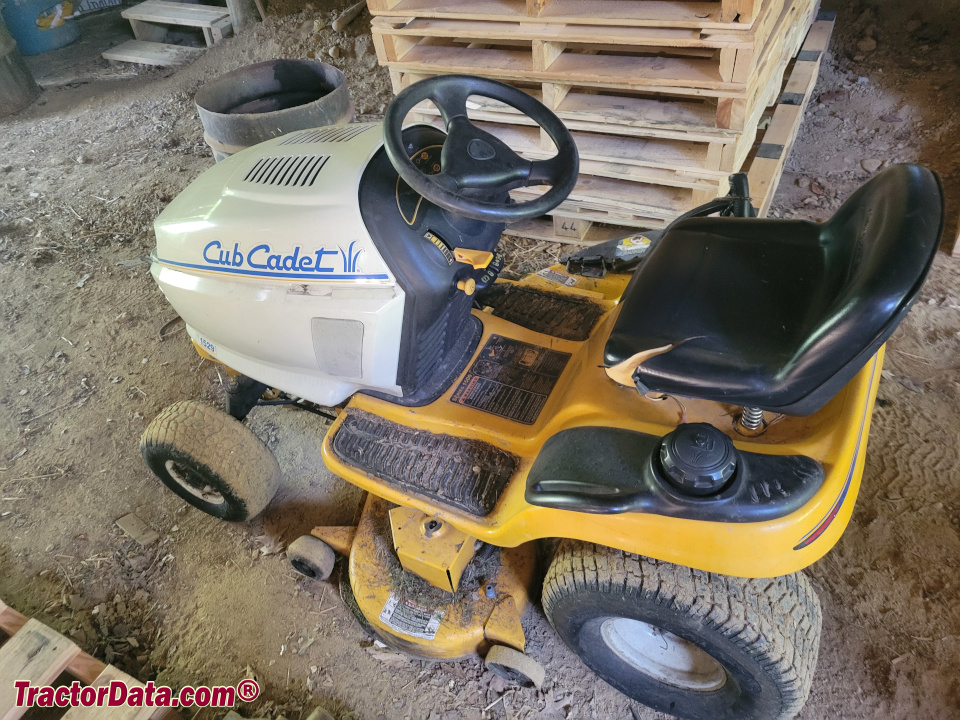

Cub Cadet 1529 lawn tractor photo
2003
1500 Series
Lawn tractor
Series:15271529
Production
Manufacturer:Cub Cadet (a part of MTD)
Type:Lawn tractor
Cub Cadet 1529 Engine
19HP Kawasaki 583cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:dry disc
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Photos
No photos of the Cub Cadet 1529 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:3 gal
11.4 L
Power Take-off (PTO)
Front PTO:independent
Clutch:electric
Dimensions & Tires
Wheelbase:47 inches
119 cm
Weight:508 lbs
230 kg
Front tire:15x6x6
Rear tire:20x9x8
Full dimensions and tires ...
Cub Cadet 1529 attachments
46" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:13
Battery
Number:1
Cold-cranking amps:270
Volts:12
