Lawn Tractors > Cub Cadet > 1529

Cub Cadet 1529 Engine



Cub Cadet 1529 tractor photo
2003
1500 Series
Lawn tractor
Series map:
1527
1529
17.0hp
19.0hp
Engine Detail
Kawasaki FH580V
gasoline
2-cylinder
air-cooled
Displacement583 cc
35.6 ci
Bore/Stroke2.91x2.68 inches
74 x 68 mm
Power (gross)19 hp
14.2 kW
Compression8.5:1
Rated RPM3600
Idle RPM1200-3600
Torque27.9 lb-ft
37.8 Nm
Torque RPM2400
Starterelectric
Starter volts12
SparkplugChampion RCJ8Y
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

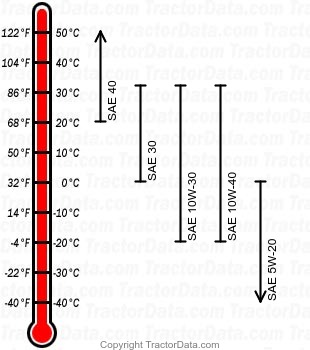

1529 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change100 h
