Cub Cadet GT 3204


Cub Cadet GT 3204 lawn tractor photo
2004
3000 Series
Garden tractor
Series map:
GT 3204
GT 3235
23.0hp
25.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Cub Cadet GT 3204 Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank4.5 gal
17.0 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Open operator station.
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49.5 inches
125 cm
Weight798 lbs
361 kg
Front tire16x6.5-8
Rear tire23x9.5-12
Full dimensions and tires ...
Cub Cadet GT 3204 attachments
44" mid-mount mower deck
48" mid-mount mower deck
54" mid-mount mower deck
snowblower
blade
Attachment details ...
GT 3204 Serial Numbers
GT 3204 Serial Location

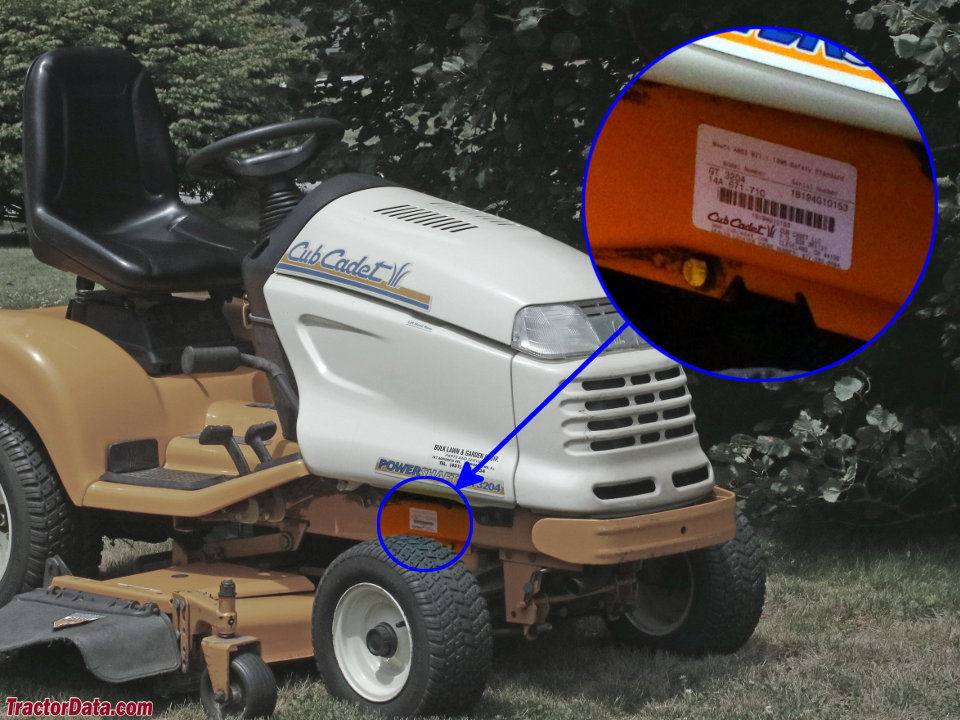

Cub Cadet GT 3204 serial number location
Serial number decal on the right side of the Cub Cadet GT 3204 tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA435
Battery volts12
References
GT 3204 references literature
Outdoor Power Equipment 2004 published by Cub Cadet
2004 Outdoor Power Equipment published by Cub Cadet
