Cub Cadet GT 3204 Engine


Cub Cadet GT 3204 lawn tractor photo
2004
3000 Series
Garden tractor
Series map:
GT 3204
GT 3235
23.0hp
25.0hp
Engine Detail
Kohler Command
gasoline
2-cylinder
air-cooled V-twin OHV
Displacement673 cc
41.1 ci
Power (gross)23 hp
17.2 kW
Compression8.5:1
Idle RPM1200-3600
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L
SparkplugChampion RC12YC

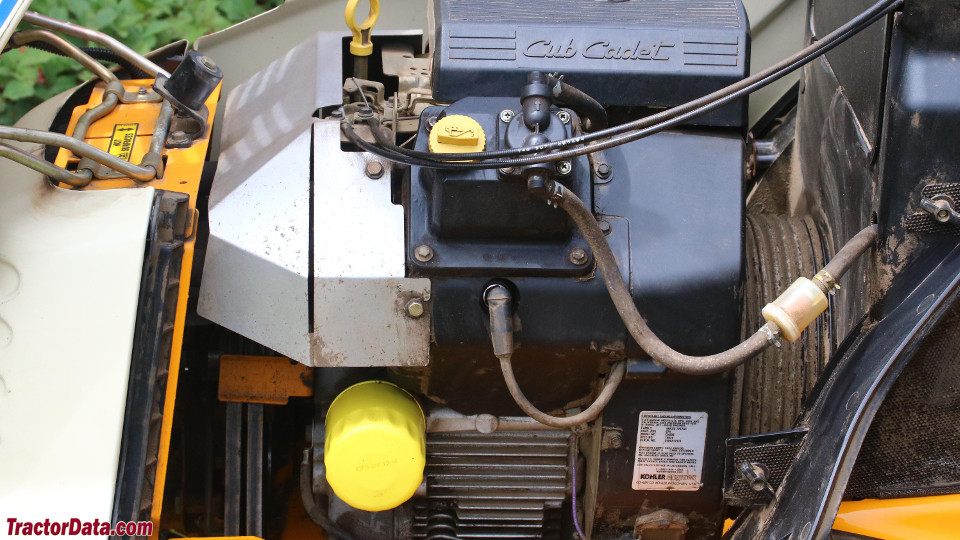

Cub Cadet GT 3204 Engine
Cub Cadet GT 3204 engine image
Image courtesy of Jim Travers
