Gravely 814

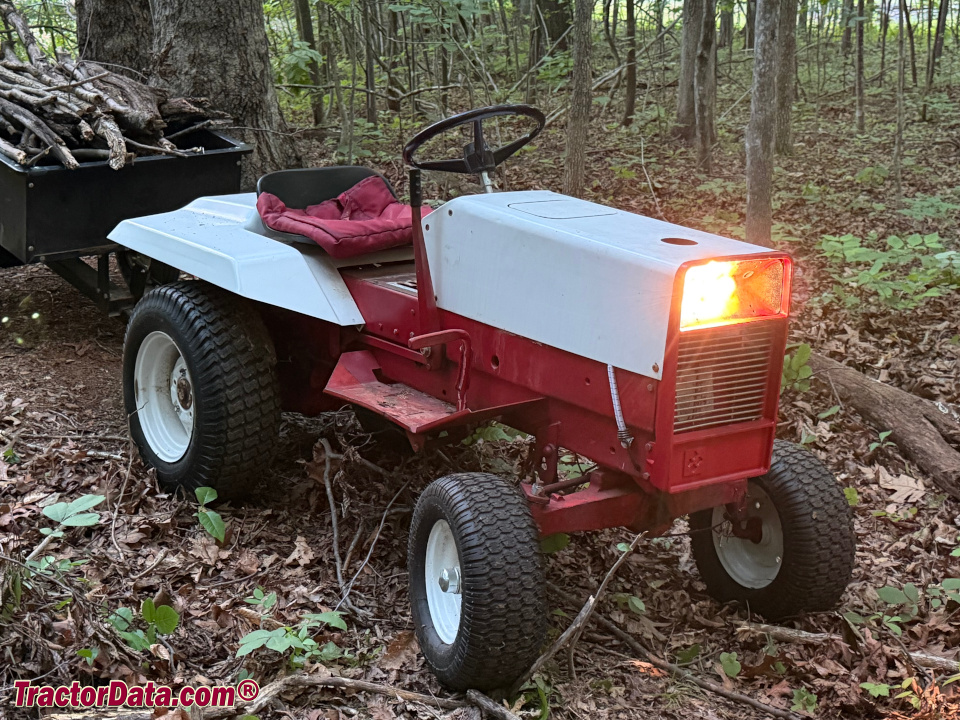

Gravely 814 lawn tractor photo
1973 - 1978
800 Series
Garden tractor
Series map:
812
814
816S
12.0hp
14.0hp
16.0hp
Production
ManufacturerGravely
Garden tractor
Gravely 814 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank5.3 gal
20.1 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the Gravely 814 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight900 lbs
408 kg
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
Gravely 814 attachments
40" mid-mount mower deck
50" mid-mount mower deck
Attachment details ...
814 Serial Numbers
Location:In front of, and below, air cleaner.
Electrical
Groundnegative
Battery volts12
Battery AH43
Battery Group22F
References
814 references literature
Owner's Manual 810 - 812 - 814 - 816 (20041L3) published in 1973
Riding Tractors published in 1973, by Gravely
