Lawn Tractors > Gravely > 814

Gravely 814 Engine



Gravely 814 tractor photo
1973 - 1978
800 Series
Garden tractor
Series map:
812
814
816S
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321
gasoline
1-cylinder
air-cooled
Displacement512 cc
31.27 ci
Bore/Stroke3.25x3.50 inches
83 x 89 mm
Power14 hp
10.4 kW
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches
0.229 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

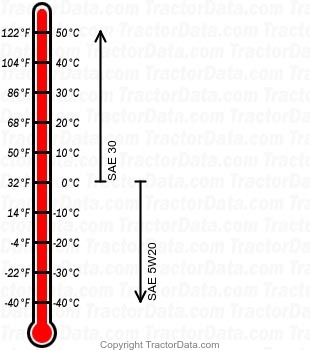

814 gasoline engine oil chart
Oil capacity2.5 qts
2.4 L
