Ingersoll 4118
|
|
| Production | |
| Manufacturer | Ingersoll |
| Garden tractor | |
| Ingersoll 4118 Engine | |
| 18HP Onan 781cc 2-cyl gasoline | |
 Engine details ... |
| Ingersoll 4118 Transmission | |
| hydraulic drive | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Mechanical band brakes | |
| Open operator station. |

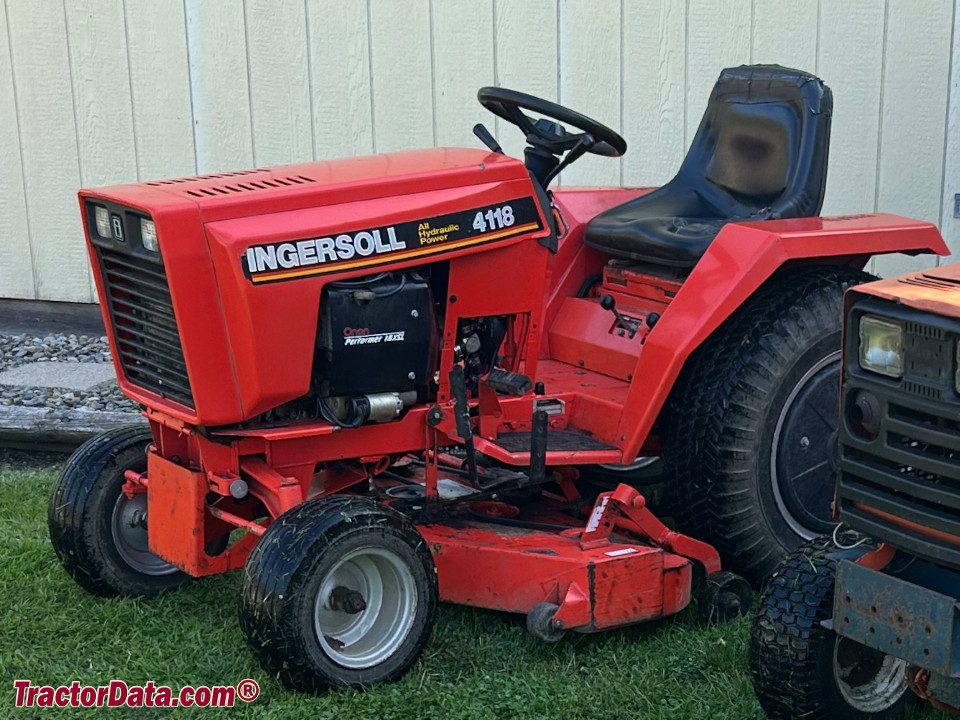

| Photos | |
 | |
 Ingersoll 4118 photos... | |
| Capacity | |
| Fuel | 3 gal 11.4 L |
| Hydraulic system | 1.5 gal 5.7 L |
| Hydraulics | |
| Type | open center |
| Capacity | 1.5 gal 5.7 L |
| Pressure | 2800 psi 193.1 bar |
| Rear valves | 2 |
| Pump flow | 9.5 gpm 36.0 lpm |
| Total flow | 13.75 gpm 52.0 lpm |
| Steering flow | 2.25 gpm 8.5 lpm |
| Steering press. | 720 psi 49.6 bar |
| Dimensions & Tires | |
| Wheelbase | 48 inches 121 cm |
| Weight | 725 lbs 328 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 8.00-16 |
 Full dimensions and tires ... | |
| Ingersoll 4118 attachments | |
| 44" mid-mount mower deck | |
| 48" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

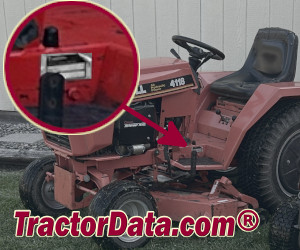

| 4118 Serial Number Location | |
 | |
| Serial number plate on the left side of the tractor frame, above the foot rest. |
| Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 20 |
| Battery CCA | 300 |
| Battery volts | 12 |
| References | |
 | |
| Operator;s Manual Compact Tractors 3118, 4116, 4118, 4120 (8-56800) published in 1992 |
