J.I. Case 224 Engine


J.I. Case 224 lawn tractor photo
1973 - 1988
200 Series
Garden tractor
Series map:
222
224
226
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321AS
gasoline
1-cylinder
air-cooled
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power14 hp
10.4 kW
Compression7:1
Rated RPM3600
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.009 inches*Cold
0.229 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

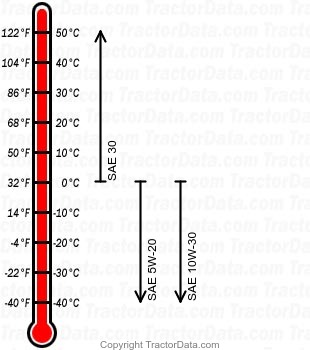

224 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
