    Kubota G5200

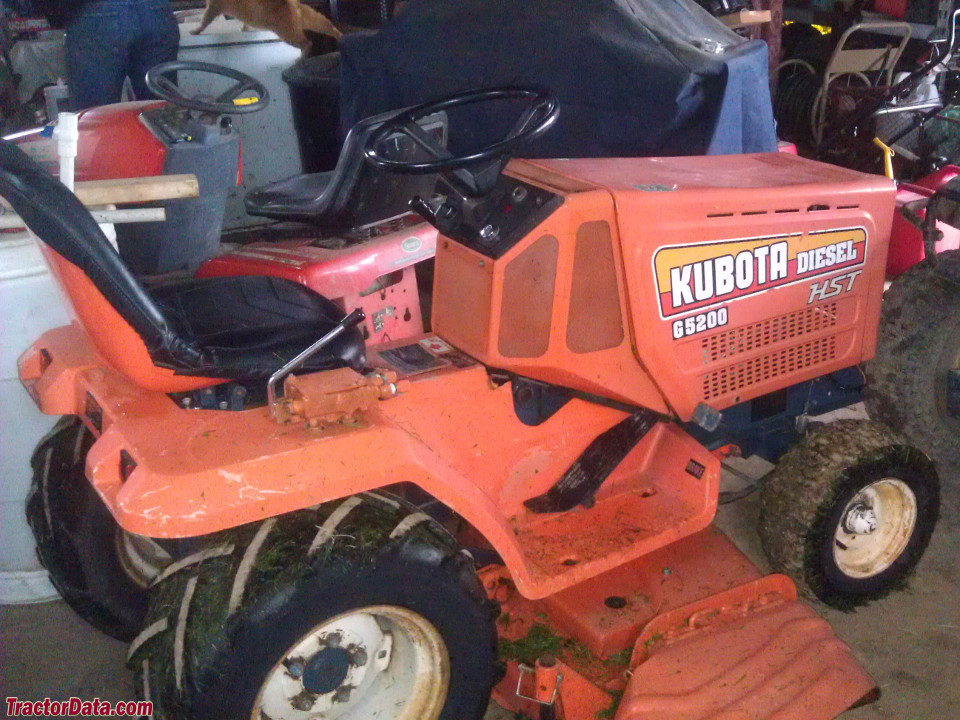

    Kubota G5200 lawn tractor photo
    1984 - 1990   G Series
    Garden tractor
    Series next:Kubota G6200
    Series back:Kubota G4200






    Production:

    Manufacturer:Kubota


    Kubota G5200 Engine:

       14HP Kubota 599cc 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:2.1 gal [7.9 L]


    3-Point Hitch:

    Rear Type:0 (optional)


    Dimensions & Tires:

    Wheelbase:47.2 inches [119 cm]
    Weight:716.5 lbs [325 kg]
    Front tire:16x6.50-8
    Rear tire:23x10.50-12
    full dimensions and tires ...


    Kubota G5200 attachments:

     40" mid-mount mower deck
     44" mid-mount mower deck
     48" mid-mount mower deck
     snowblower
     blade
    all G5200 attachments ...


    G5200 Serial Numbers:

    Location:Left side of tractor frame, above front axle.

    - Serial numbers unknown -



    Mechanical:

    Transmission:hydrostatic
    Chassis:4x2 2WD
    Brakes:disc
    Cab:Open operator station.


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Volts:12
    Amp-hours:35
