Lawn Tractors > Kubota > G4200

Kubota G4200

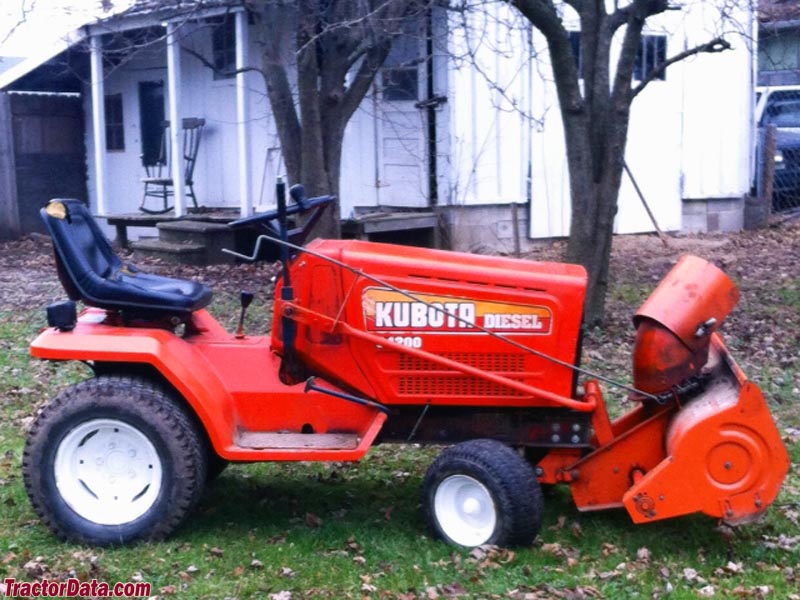

Kubota G4200 lawn tractor photo
1984 - 1990   G Series
Garden tractor
Series next:Kubota G5200
Series back:Kubota G3200






Production:

Manufacturer:Kubota


Kubota G4200 Engine:

   12HP Kubota 424cc 2-cyl diesel
full engine details ...


Capacity:

Fuel:2.1 gal [7.9 L]


3-Point Hitch:

Rear Type:0 (optional)


Dimensions & Tires:

Weight:683.5 to 694.5 pounds
Front tire:16x6.50-8
Rear tire:23x10.50-12
full dimensions and tires ...


Kubota G4200 attachments:

 40" mid-mount mower deck
 44" mid-mount mower deck
 snowblower
 blade
all G4200 attachments ...


G4200 Serial Numbers:

Location:Left side of tractor frame, above front axle.

- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Transmission:3-speed gear
Chassis:4x2 2WD
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
Amp-hours:35
