Cub Cadet 128


Cub Cadet 128 lawn tractor photo
1971 - 1974
1X8/1X9 Series
Garden tractor
126
Series:109128129
Production
Manufacturer:Cub Cadet (a part of International Harvester)
Type:Garden tractor
Factory:Louisville, Kentucky, USA
Variants
129:hydrostatic
128:gear
Cub Cadet 128 Engine
12HP Kohler 476cc 1-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical disc
Cab:Open operator station.
Transmissions:3-speed gear
 6-speed creeper
Transmission details ...
Capacity
Fuel:2 gal
7.6 L
Tractor hitch
Type:sleeve hitch (optional)
Power Take-off (PTO)
Rear PTO:transmission (optional)
Rear RPM:515
Front PTO:independent
Clutch:mechanical
Dimensions & Tires
Wheelbase:44 inches
111 cm
Front tire:4.80/4.00-8
Rear tire:23x8.50-12
Full dimensions and tires ...
Cub Cadet 128 attachments
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Attachment details ...
128 Serial Numbers

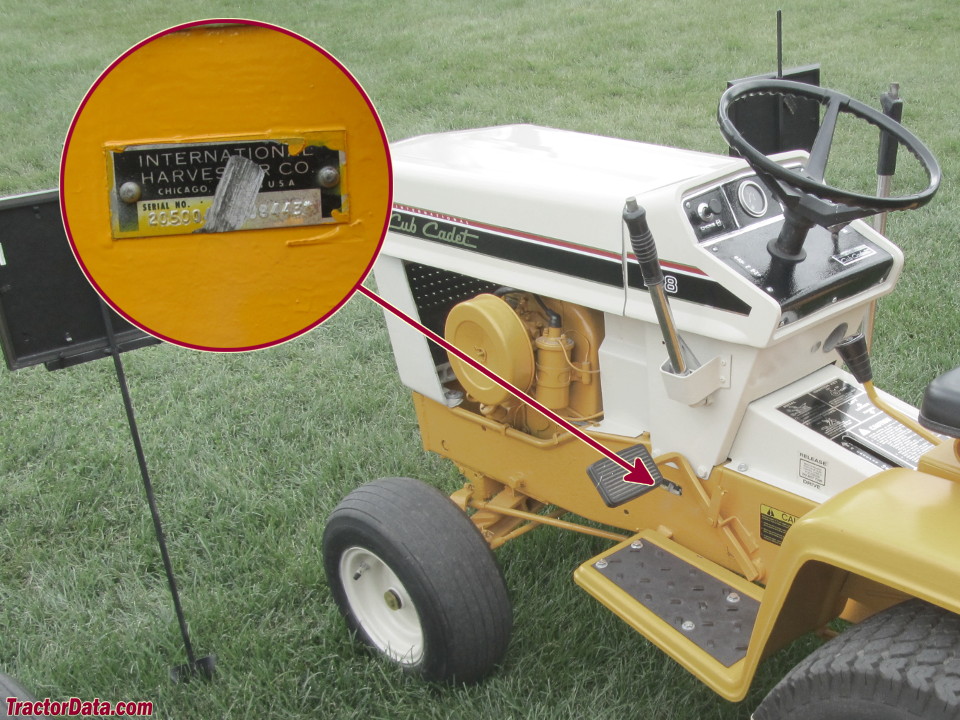

Location:Tractor's rear-drive housing, or the left side of the tractor frame (after February 1974).
1971: 400001
1972: 417643
1973: 457305
1974: 495749
Final: 529811

how to read serial numbers...

Electrical
Ground:negative
Charging system:Delco-Remy generator
Charging amps:15
Battery
Number:1
Volts:12
