| | 1971 - 1974 |
| 1X8/1X9 Series | | Garden tractor |
|
Series map:
109
128
129
10.0hp
12.0hp
12.0hp
| Transmissions overview |
| 3-speed gear |
| 6-speed creeper |
| Transmission |
| Type | gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 3.5 qts
3.3 L
|
| Oil type |
|

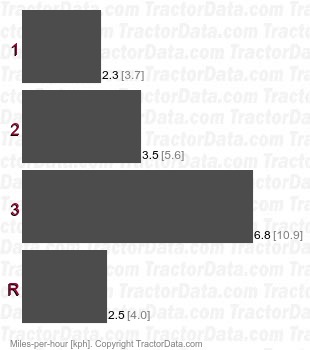

| Speeds |
|

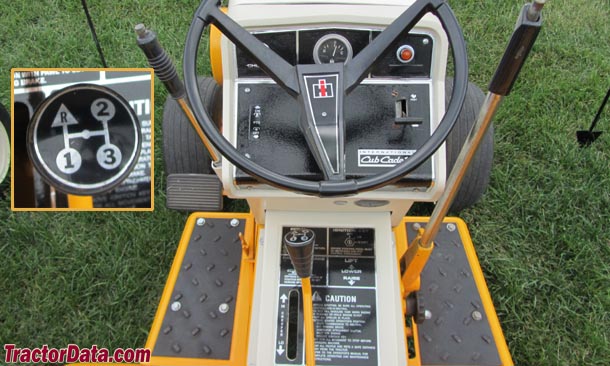

| Shift Pattern |
 |
| 128 Transmission Controls |
 |
| 1 | Clutch/brake
|
| 2 | Throttle
|
| 3 | Gear shift
|
| Transmission |
| Type | creeper
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 3.75 qts
3.5 L
|
| The optional creeper provided an additional lower range. Moving the creeper shift lever forward engages direct drive, while the creeper is to the rear. The creeper ratio is a 4:1 reduction. |

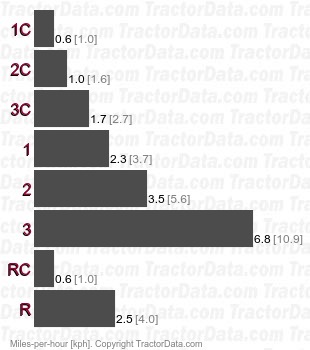

| Speeds |
|
