    Cub Cadet 109

    Cub Cadet 109 lawn tractor photo
    1971 - 1974   1X8/1X9 Series
    Garden tractor
    Previous model:Cub Cadet 107
    Larger:Cub Cadet 128
    Smaller:Cub Cadet 108






    Production:

    Manufacturer:International Harvester
    Factory:Louisville, Kentucky, USA


    Variants:

    109:hydrostatic
    108:gear


    Cub Cadet 109 Engine:

       Kohler 391cc 1-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:2 gal [7.6 L]


    Rear Hitch:

    Type:sleeve hitch (optional)


    Power Take-off (PTO):

    Front PTO:independent
    Clutch:mechanical


    Dimensions & Tires:

    Wheelbase:44 inches [111 cm]
    Front tire:4.80/4.00-8
    Rear tire:6-12
    full dimensions and tires ...


    Cub Cadet 109 attachments:

     38" mid-mount mower deck
     44" mid-mount mower deck
     50" mid-mount mower deck
    all 109 attachments ...


    109 Serial Numbers:

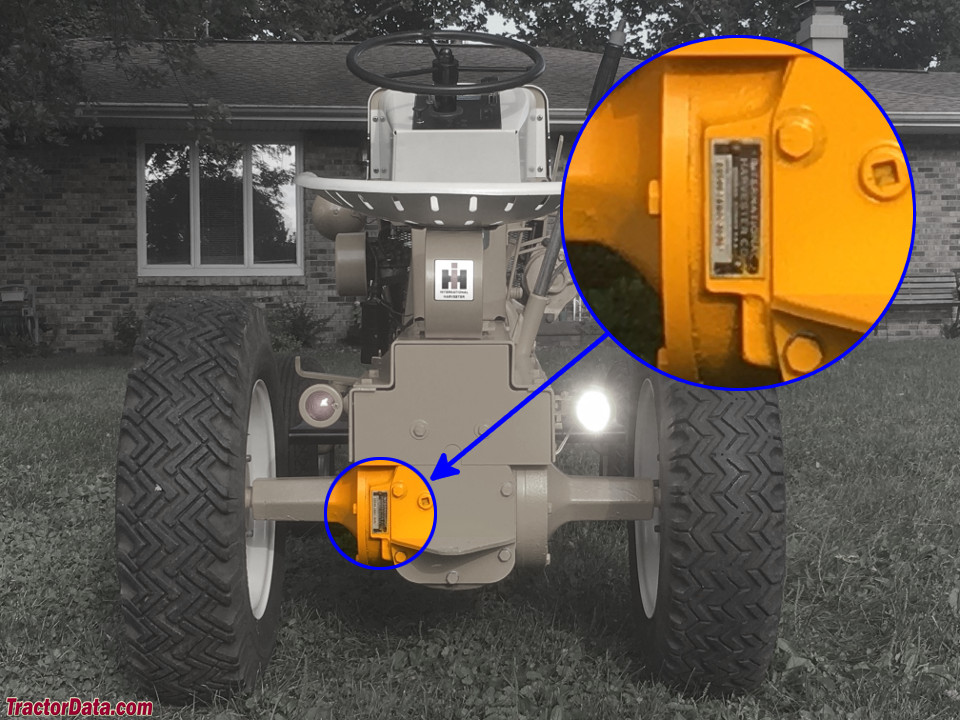

    Location:Tractor's rear-drive housing, or the left side of the tractor frame (after February 1974).
    1971: 400001
    1972: 417643
    1973: 457305
    1974: 495749
    Final: 529811

    how to read serial numbers...



    Cub Cadet 109 Power:

    Engine:10 hp [7.5 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical disc
    Cab:Open operator station.


    Electrical:

    Ground:negative
    Charging system:Delco-Remy generator
    Charging amps:15


    Battery:

    Number:1
    Volts:12
