Cub Cadet 109 Engine



Cub Cadet 109 lawn tractor photo
1971 - 1974
1X8/1X9 Series
Garden tractor
Series map:
108
109
128
10.0hp
10.0hp
12.0hp
Engine Detail
Kohler K241A
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Air cleanerdry cartridge
Rated RPM3600
Idle RPM1000-3800
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

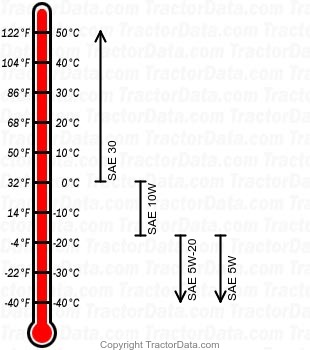

109 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
