Lawn Tractors > Allis Chalmers > 410

Allis Chalmers 410

Allis Chalmers 410 lawn tractor photo
1973 - 1973   400 Series
Garden tractor
Previous model:Allis Chalmers 310
Series next:Allis Chalmers 414





There were no Simplicity models that were equivalent to the Allis-Chalmers 410, but the tractor had model codes 1600258 (3-speed) and 1600299 (shuttle) for identification in the Simplicity catalog.


Production:

Manufacturer:Allis Chalmers
Factory:Lexington, South Carolina, USA


Variants:

410S:shuttle
410-3SP:three-speed


Allis Chalmers 410 Engine:

   10HP Kohler 391cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:3.5 gal [13.2 L]


Power Take-off (PTO):

Rear PTO:optional
Rear RPM:540
Front PTO:independent
Clutch:electric
Front RPM:3600


Dimensions & Tires:

Wheelbase:48.1 inches [122 cm]
Weight:780 to 825 pounds
Front tire:4.80/4.00x8
Rear tire:23-8.50x12
full dimensions and tires ...


Allis Chalmers 410 attachments:

 42" mid-mount mower deck
 snowblower
 blade
all 410 attachments ...


410 Serial Numbers:

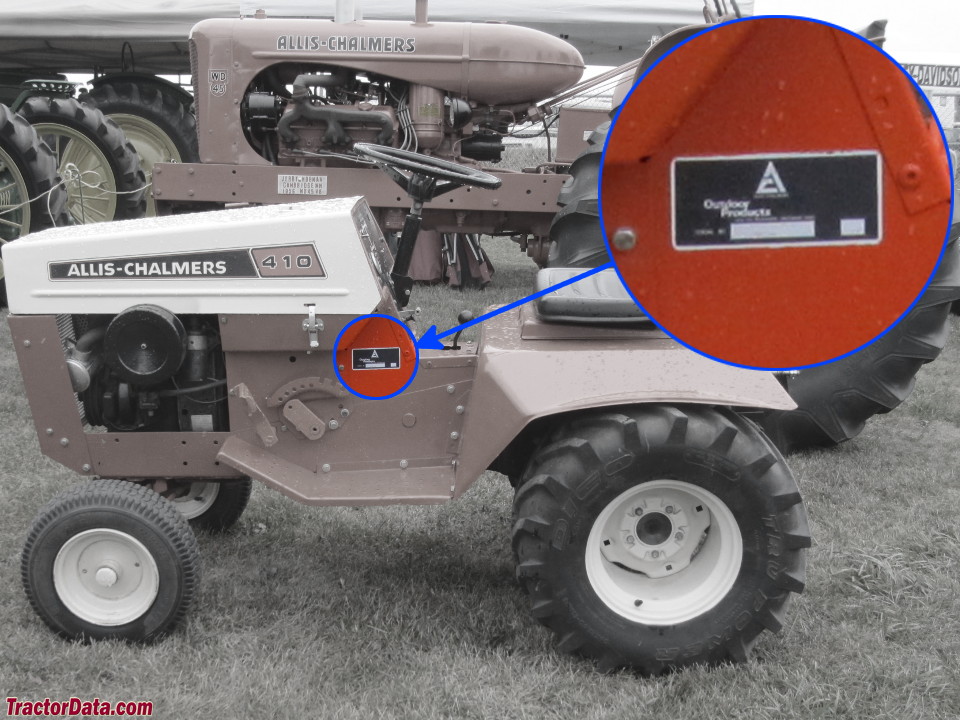

Location:Serial number plate on left side of tractor.

- Serial numbers unknown -



Links:

SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com


Mechanical:

Transmission:4-speed shuttle
Transmission:3-speed gear
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative
Charging amps:15


Battery:

Number:1
Volts:12
