Allis Chalmers 410 Transmission


Allis Chalmers 410 lawn tractor photo
1973
400 Series
Garden tractor
Series map:
410
414
10.0hp
14.0hp
Transmissions overview
4-speed shuttle
3-speed gear
Transmission
Typeshuttle
Gears4 forward and reverse
Oil capacity1.5 qts
1.4 L
Four speed transmission with right-hand shuttle lever. Tractor must be stopped to shift gears and shuttle lever in neutral, or the clutch/brake pedal fully depressed.

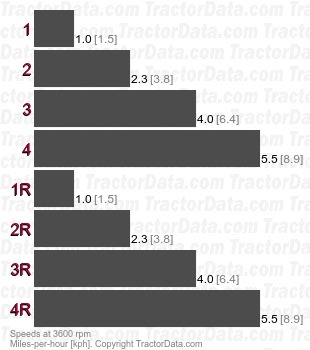

Speeds
410  shuttle speeds
Shift Pattern
Allis Chalmers 410 transmission controls
410 Transmission Controls
Allis Chalmers 410 transmission controls
1Throttle
2Clutch/brake
3Shuttle shift
4Gear shift
Transmission
Typegear
Gears3 forward and 1 reverse
Gear transmission operated with center-mount gear shift and right-hand clutch/brake pedal. Tractor must be stopped, and clutch used, to shift gears.

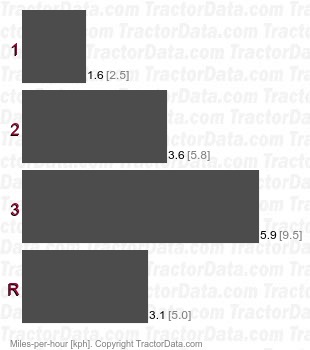

Speeds
410  gear speeds
