John Deere X595 Transmission


John Deere X595 lawn tractor photo
2002 - 2006
HDGT X Series
Garden tractor
Series map:
X585
X595
25.0hp
24.0hp
Transmission
TransmissionTuff Torq K92
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity7 qts
6.6 L
Oil type
Low Viscosity HY-GARD
(J20D)

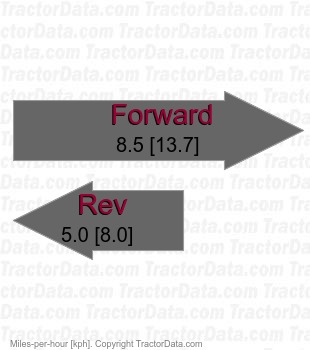

Speeds
X595 K92 shaft-driven hydrostatic speeds

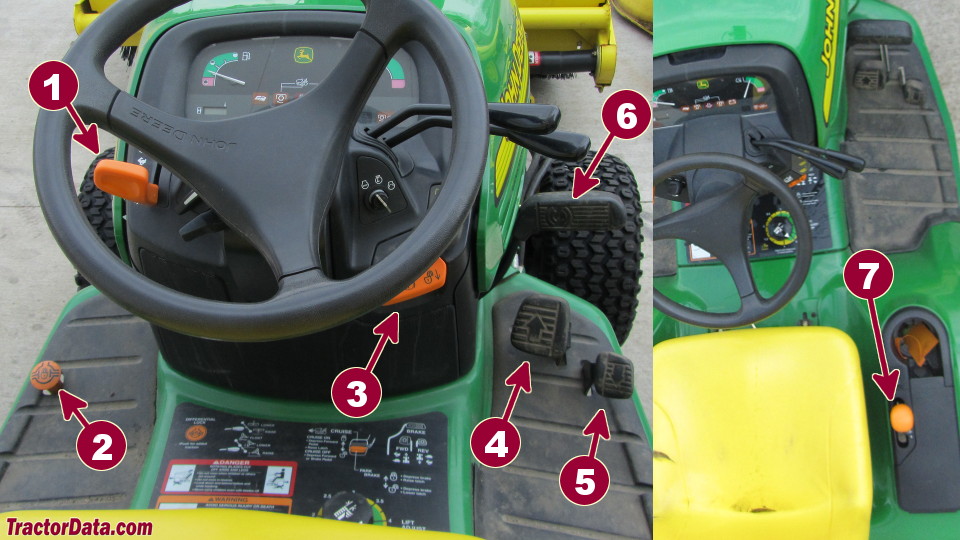

X595 Transmission Controls
John Deere X595 transmission controls
1Throttle
2Differential Lock
3Parking Brake
4Forward
5Reverse
6Brake
7Four-wheel Drive
