    John Deere L120 - engine

    John Deere L120 lawn tractor photo
    2003 - 2005   L100 Series
    Lawn tractor
    Larger:John Deere L130
    Smaller:John Deere L118
    more John Deere L120 specifications...






    Engine Detail:

    The 20 horsepower CV40 was used in 2003 and 2004, to serial number 150001.
     Briggs & Stratton CV40
     gasoline
     2-cylinder
     air-cooled
    Power:20 hp [14.9 kW]
    Air cleaner:replaceable foam
    Starter volts:12
    Oil capacity:2 qts [1.9 L]
    Sparkplug gap:0.040 inches [1.016 mm]

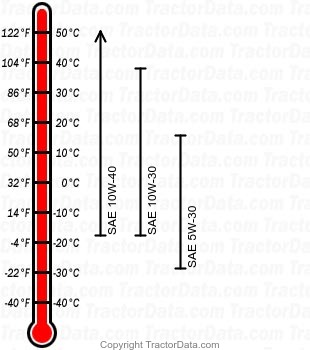

    L120 gasoline engine oil chart


    Engine Detail:

    The 22 horsepower engine was used in 2005, the final production year.
     Briggs & Stratton 40
     gasoline
     2-cylinder
     air-cooled
     655 cc [40ci ]
    Bore/Stroke:2.97x2.89 inches [75 x 73 mm]
    Power:22 hp [16.4 kW]
    Air cleaner:replaceable foam
    Oil capacity:2 qts [1.9 L]
    Sparkplug gap:0.030 inches [0.762 mm]
    Point gap:0.010 inches [0.254 mm]
    Intake valve clearance:0.005 inches [0.127 mm]
    Exhaust valve clearance:0.010 inches [0.254 mm]
    L120 gasoline engine oil chart
