Lawn Tractors > John Deere > L130

John Deere L130 Engine



John Deere L130 tractor photo
2003 - 2005
L100 Series
Lawn tractor
Series map:
L120
L130
20.0hp
23.0hp
Engine Detail
Kohler CV23S
gasoline
2-cylinder
air-cooled vertical shaft V-Twin
Displacement673 cc
41.1 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power (gross)23 hp
17.2 kW
Air cleanerdual state
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.225 inches
5.715 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.010 inches
0.254 mm
Engine Oil

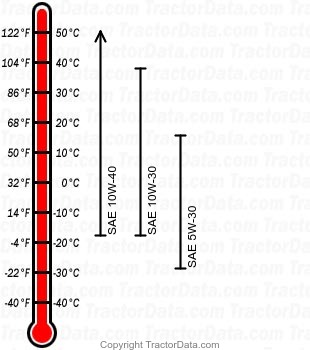

L130 gasoline engine oil chart
Oil capacity2 qts
1.9 L
