| | 2002 - 2005 |
| GX300 Series | | Garden tractor |
|
Series map:
GX345
GX355
20.0hp
18.0hp
| Engine Detail |
| Yanmar 2V-78 |
| diesel |
| 2-cylinder |
| liquid-cooled vertical-shaft V-Twin |
| Displacement | 749 cc
45.7 ci
|
| Bore/Stroke | 3.07x3.09 inches
78 x 78 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Compression | 22:1
|
| Starter volts | 12
|
| Coolant capacity | 3.3 qts
3.1 L
|

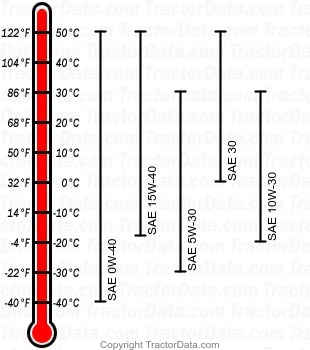

| Engine Oil |
|
| Oil capacity | 2.4 qts
2.3 L
|
| John Deere GX355 Engine |
 |
| Image courtesy of Sorin Lungoci |
