John Deere 455 Engine


John Deere 455 lawn tractor photo
1992 - 2001
400 Series
Garden tractor
Series map:
445
455
22.0hp
22.0hp
Engine Detail
Yanmar 3TNA72UJ3
diesel
3-cylinder
liquid-cooled horizontal-shaft OHV
Displacement881 cc
53.8 ci
Bore/Stroke2.83x2.83 inches
72 x 72 mm
Power22 hp
16.4 kW
Fuel systemelectric indirect injection
Air cleanerdry type
Pre-heatingglow plugs
Compression21.6:1
Rated RPM3350
Starter volts12
Coolant capacity3 qts
2.8 L
Engine Oil

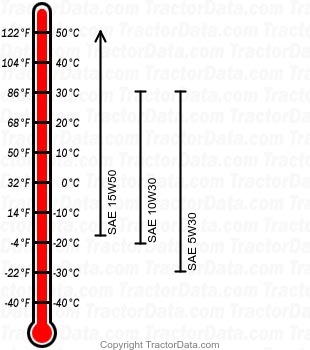

455 diesel engine oil chart
Oil capacity3 qts
2.8 L
John Deere 455 Engine

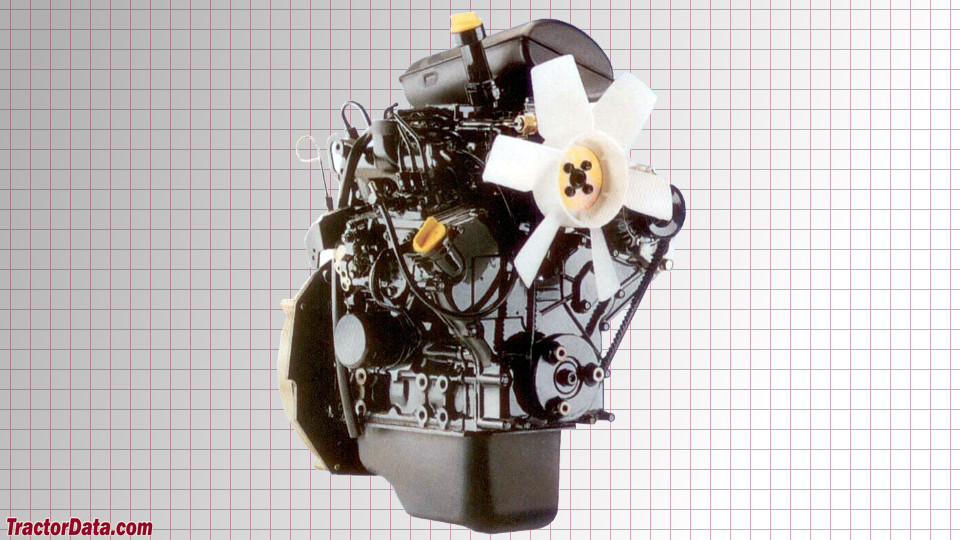

John Deere 455 engine image
