John Deere 430 Engine

John Deere 430 lawn tractor photo
1984 - 1992
400 Series
Garden tractor
Series map:
Engine Detail
Yanmar 3TNA72UJ
liquid-cooled horizontal-shaft inline
Displacement885 cc
54 ci
Bore/Stroke2.83x2.83 inches
72 x 72 mm
Power20 hp
14.9 kW
Air cleanerdry
Pre-heatingglow plugs
Idle RPM1300-3400
Starter volts12
Coolant capacity4 qts
3.8 L
Engine Oil

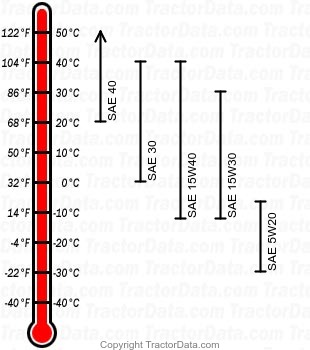

430 diesel engine oil chart
Oil capacity3.6 qts
3.4 L
Oil change200 h
John Deere 430 Engine

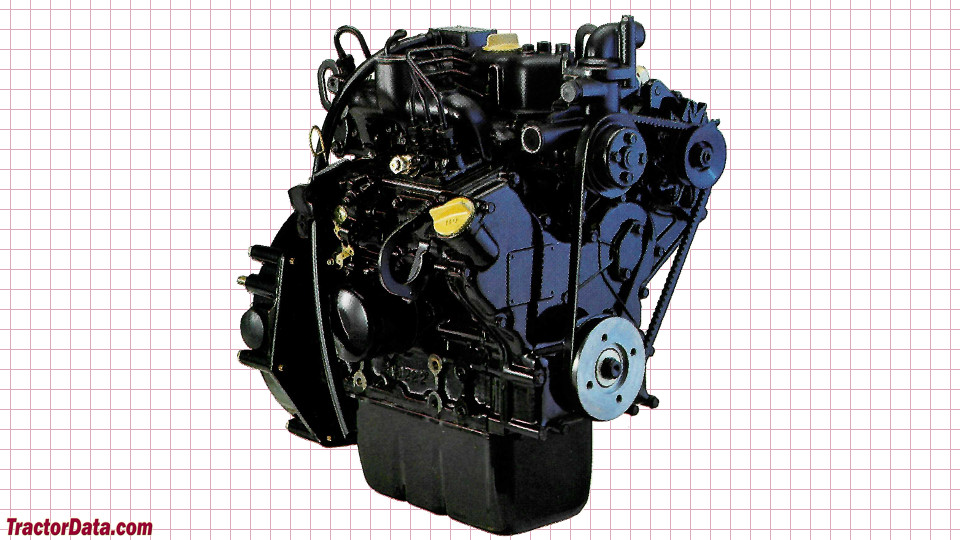

John Deere 430 engine image
