Lawn Tractors > John Deere > 322

John Deere 322 Engine



John Deere 322 lawn tractor photo
1988 - 1992
300 Series
Garden tractor
Series map:
318
322
332
18.0hp
18.0hp
16.0hp
Engine Detail
Yanmar 3TG66UJ
gasoline
3-cylinder
liquid-cooled horizontal-shaft inline
Displacement658 cc
40.2 ci
Bore/Stroke2.60x2.53 inches
66 x 64 mm
Power (gross)18 hp
13.4 kW
Air cleanerdry element
Compression8.7:1
Idle RPM1300-3425
Starter volts12
Coolant capacity2.9 qts
2.7 L
SparkplugChampion RN11YC
 NGK BPR4BS
Sparkplug gap0.032 inches
0.813 mm
Engine Oil

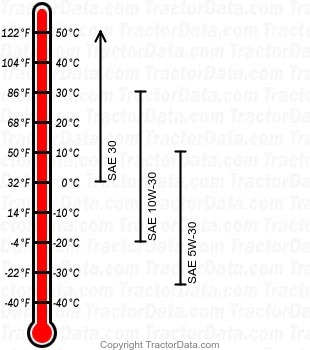

322 gasoline engine oil chart
Oil capacity2.9 qts
2.7 L
Oil change200 h
