    John Deere 318 - engine

    John Deere 318 lawn tractor photo
    1983 - 1992   300 Series
    Garden tractor
    Previous model:John Deere 317
    Series back:John Deere 316
    more John Deere 318 specifications...






    Engine Detail:

    The Onan B43G was used from 1983 to 1987, tractor serial number M00318X420000.

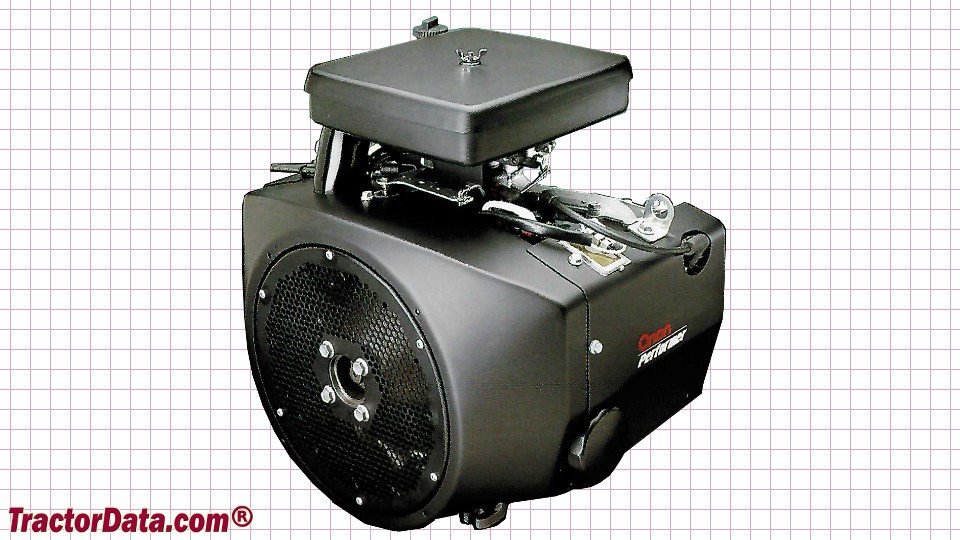

     Onan B43G
     gasoline
     2-cylinder 4-valve
     air-cooled horizontal-shaft opposed twin
     709 cc [43.3ci ]
    Bore/Stroke:3.25x2.62 inches [83 x 67 mm]
    Power (gross):18 hp [13.4 kW]
    Air cleaner:foam and paper
    Compression:6.5:1
    Rated RPM:3500
    Starter volts:12
    Oil capacity:1.75 qts [1.7 L]
    Sparkplug:JD AM38622
     NGK BPR5EFS
     Motorcraft AGRF32
    Sparkplug gap:0.025 inches [0.635 mm]

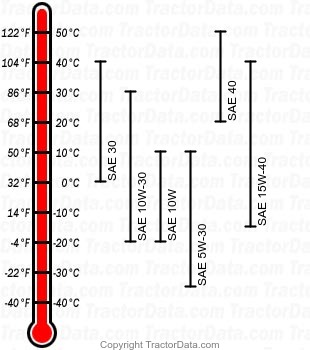

    318 gasoline engine oil chart


    Engine Detail:

    The Onan P218 was used in the John Deere 318 from 1987, serial number M00318X420001, through the end of production.
     Onan P218
     gasoline
     2-cylinder
     air-cooled horizontal-shaft opposed twin
     781 cc [47.7ci ]
    Bore/Stroke:3.25x2.88 inches [83 x 73 mm]
    Power (gross):18 hp [13.4 kW]
    Rated RPM:3600
    Starter volts:12
    Sparkplug:NGK BPR5EFS
     Champion RS14YC
