John Deere 318 Attachments


John Deere 318 tractor photo
1983 - 1992
300 Series
Garden tractor
Series map:
316
318
322
16.0hp
18.0hp
18.0hp
Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Front-end loader
Two tillers were available for the 318, a 48-inch shaft drive and a 30-inch hydraulic tiller (optional extension to 42 inch). The shaft-drive tiller required the optional 2000 RPM rear PTO. The hydraulic tiller operated off a separate hydraulic pump that was belt-driven in place of the mower deck. A rear-mounted finish mower was available for the 318, if equipped with three-point hitch and 2000 RPM rear PTO. Three baggers were available. A two-bag (6.5 bushel) Power Flow system had a fan that was belt-driven from the right-hand mower spindle. A three-bag (10 bushel) system had an auxiliary 6-horsepower Kawasaki engine to run the blower. A 13-bushel material collection system used an auxiliary 6-horsepower Kawasaki engine and was available with manual tilt dump or a hydraulic dump connected to a rear hydraulic outlet; it could dump 370 pounds at a height of 66 inches.
38" Mower deck
John Deere 664
38 inches
96 cm
Total width: 49.7 inches
126 cm
2-blade
hydraulic lift
right-discharge
Cut height: 1 to 4 inch
2 to 10 cm
100 lbs
45 kg
Belt: John Deere M89090 (primary)*-SN555000
Belt: John Deere M71729 (primary)*SN555001+
Belt: John Deere M82538 (secondary)
46" Mower deck
John Deere 595/596
46 inches
116 cm
Total width: 57 inches
144 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 5 inch
3 to 12 cm
116 lbs
52 kg
Belt: John Deere M82718 (primary)
Belt: John Deere M41668 (secondary)
50" Mower deck
John Deere 1013
50 inches
127 cm
Total width: 68 inches
172 cm
3-blade
hydraulic lift
right-discharge
Cut height: 1.5 to 4 inch
3 to 10 cm
186 lbs
84 kg
Belt: John Deere M82718 (primary)
Belt: John Deere M41668 (secondary)

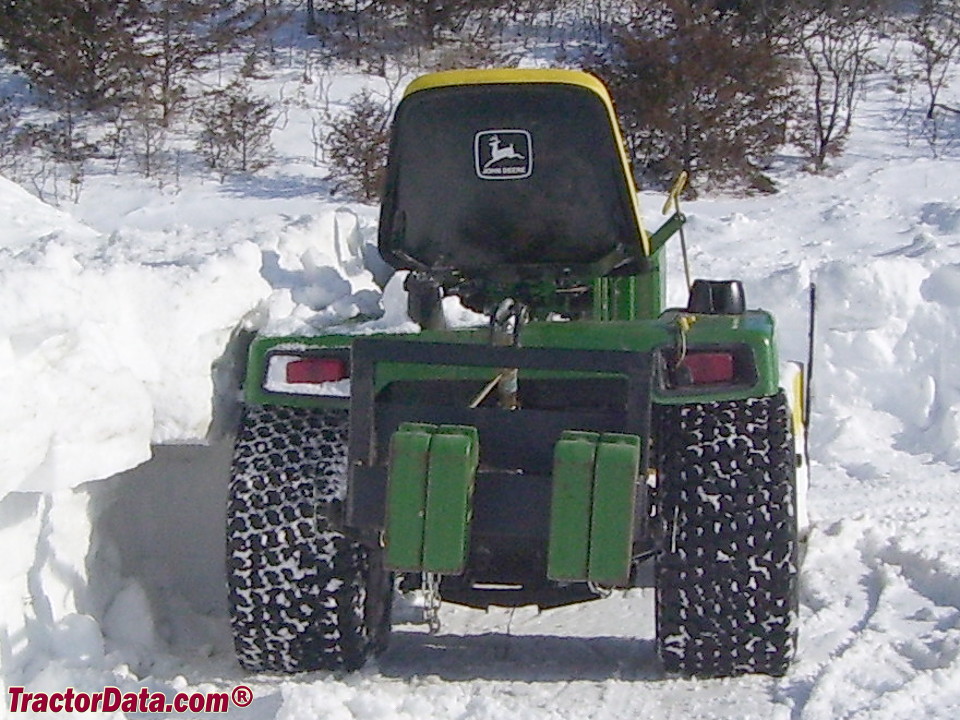

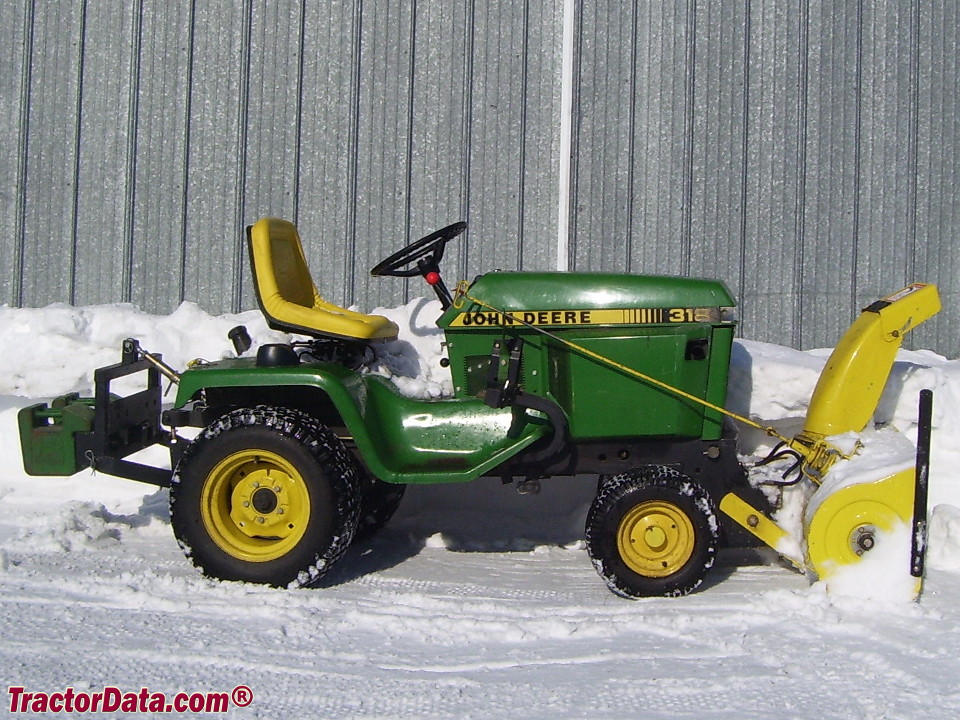

John Deere 318 with 49 snow blower.
John Deere 318 with 49 snow blower. (3 images)
John Deere 318 with 54 hydraulic blade.
John Deere 318 with 54 hydraulic blade.
54" Blade
John Deere 54
front-mount
54 inches width
137 cm
18 inches height
45 cm
12 inches lift
30 cm
3.5 inches cut
8 cm
150 lbs
68 kg
hydraulic-lift
manual-angle
hydraulic -angleOptOptional
46" Snow blower
John Deere 49 0603M
46 inches width
116 cm
single-stage
front-mount
hydraulic-lift
200 lbs
90 kg
47" Snow blower
John Deere 47 2752M
47 inches width
119 cm
dual-stage
Clear height:23 inches
58 cm
front-mount
hydraulic-lift
400 lbs
181 kg
44 Loader
400 lbs lift (full at pin)
181 kg
575 lbs breakout (bucket)
260 kg
50° dump
44 inches reach (ground)
111 cm
20° rollback
71.5 inches height (at pin)
181 cm
21 inches clearance (dumped)
53 cm
weight: 500 lbs
226 kg
Bucket width: 48 inches
121 cm
Bucket width: 54 inches
137 cm
Bucket capacity: 0.21 cu yd
0.2 cu m
Bucket capacity: 0.24 cu yd
0.2 cu m
