| | 1986 - 1990 |
| Late 100 Lawn Series | | Lawn tractor |
|
Series map:
175
180
185
14.0hp
17.0hp
17.0hp
| Engine Detail |
| Kawasaki FC540V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 534 cc
32.64 ci
|
| Bore/Stroke | 3.50x3.38 inches
89 x 86 mm
|
| Power | 17 hp
12.7 kW
|
| Air cleaner | dry with foam precleaner
|
| Rated RPM | 3350
|
| Starter volts | 12
|
| Oil capacity | 1.7 qts
1.6 L
|

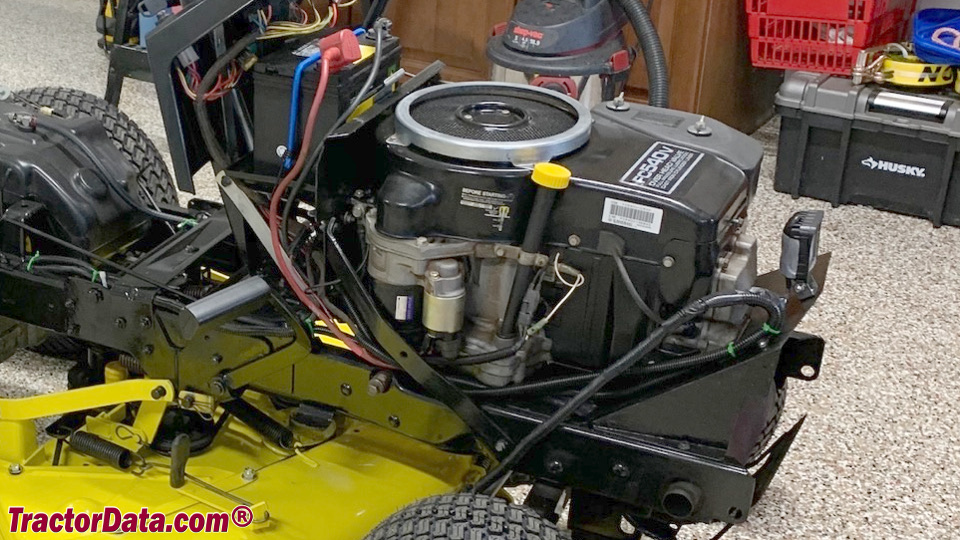

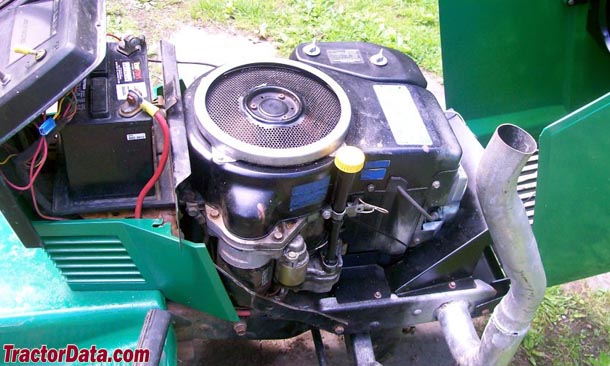

| John Deere 180 Engine |
 |
| Image courtesy of Brian Murray |
