John Deere 175 Engine

John Deere 175 lawn tractor photo
1987 - 1990
Late 100 Lawn Series
Lawn tractor
Engine Detail
Kawasaki FC420V
air-cooled vertical-shaft
Displacement422 cc
25.8 ci
Bore/Stroke3.50x2.68 inches
89 x 68 mm
Power14 hp
10.4 kW
Air cleanerdry with foam pre-cleaner
Rated RPM3350
Starter volts12
Oil capacity1.5 qts
1.4 L

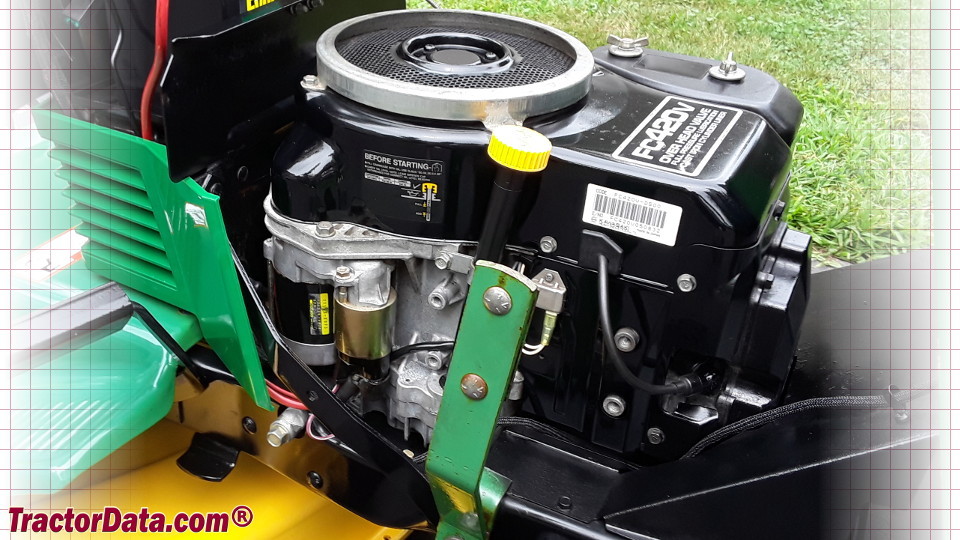

John Deere 175 Engine
John Deere 175 engine image
Image courtesy of Douglas Wardenski
