| | 1989 - 1990 |
| Late 100 Lawn Series | | Lawn tractor |
|
Series map:
165
170
175
12.5hp
14.0hp
14.0hp
| Engine Detail |
| Kawasaki FC420V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 422 cc
25.8 ci
|
| Bore/Stroke | 3.50x2.68 inches
89 x 68 mm
|
| Power | 14 hp
10.4 kW
|
| Air cleaner | dry with foam pre-cleaner
|
| Rated RPM | 3350
|
| Starter volts | 12
|
| Oil capacity | 1.5 qts
1.4 L
|

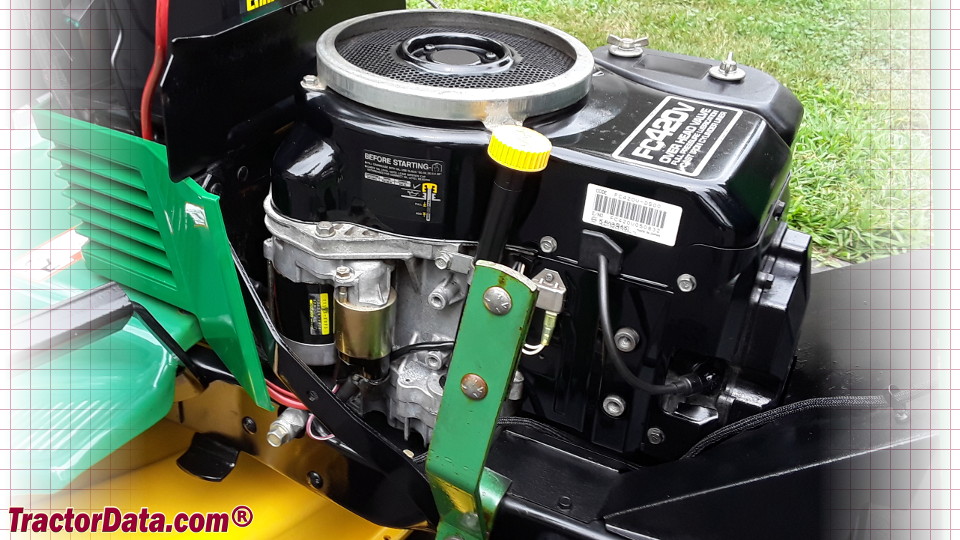

| John Deere 170 Engine |
 |
| Image courtesy of Douglas Wardenski |
