John Deere 115 - engine
| | Engine Detail: |
| Engine Type: | Briggs & Stratton
|
| | gasoline
|
| | 1-cylinder
|
| | air-cooled
|
| Displacement: | 501 cc [30.6ci ]
|
| Bore/Stroke: | 3.56x3.06 inches [90 x 78 mm]
|
| Power: | 19 hp [14.2 kW]
|
| Starter volts: | 12
|

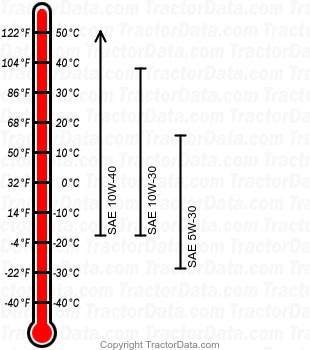

| Oil capacity: | 1.5 qts [1.4 L]
|
| Sparkplug gap: | 0.030 inches [0.762 mm]
|
| Point gap: | 0.012 inches [0.305 mm]
|
| Intake valve clearance: | 0.004 inches [0.102 mm]
|
| Exhaust valve clearance: | 0.006 inches [0.152 mm]
|
|
