John Deere 102 Engine


John Deere 102 lawn tractor photo
2006
Lawn tractor
Series map:
102
115
17.0hp
19.0hp
Engine Detail
Briggs & Stratton
gasoline
1-cylinder
air-cooled
Displacement501 cc
30.6 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power17 hp
12.7 kW
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.006 inches
0.152 mm
Engine Oil

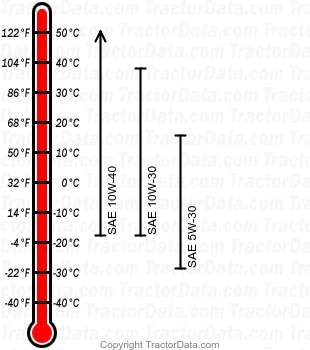

102 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
