| | 1958 - 1963 |
| Industrial tractor |
|
| Transmissions overview |
| 5-speed gear |
| 10-speed two-speed power shift |
| 5-speed mechanical shuttle |

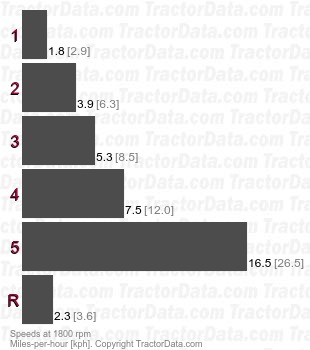

| Transmission |
| Type | gear
|
| Gears | 5 forward and 1 reverse
|
| Clutch | dry disc
|
| Speeds |
| With 13.6/12-28 rear tires. |
|

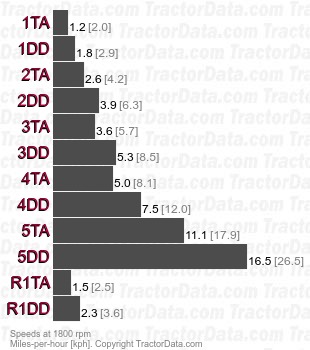

| Transmission |
| Transmission | Torque Amplifier
|
| Type | two-speed power shift
|
| Gears | 10 forward and 2 reverse
|
| Clutch | dry disc
|
| Speeds |
| With 13.6/12-28 rear tires. |
|

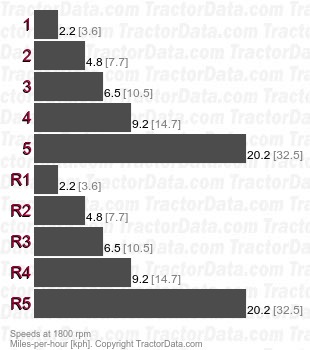

| Transmission |
| Transmission | Fast Reverse
|
| Type | mechanical shuttle
|
| Gears | 5 forward and reverse
|
| Clutch | dry disc
|
| Speeds |
| With 13.6/12-28 rear tires. |
|
