International Harvester 21026


International Harvester 21026 industrial tractor photo
1970 - 1971
Industrial tractor
Production
ManufacturerInternational Harvester
Industrial tractor
Built in Rock Island, Illinois, USA
Total built59 (both standard and industrial)
Variants
IH 1026standard
Farmall 1026row-crop
IH 21026industrial
International Harvester 21026 Engine
International Harvester 6.7L 6-cyl diesel
Fuel tank42 gal
159.0 L
Engine details ...
International Harvester 21026 Power
Engine (gross)127 hp
94.7 kW
Engine (net)123 hp
91.7 kW
Drawbar (claimed)80 hp
59.7 kW
PTO (claimed)112 hp
83.5 kW
Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic dry disc brakes
Open operator station.
Hydraulics
Total flow12 gpm
45.4 lpm
 17 gpm (optional)
64.3 lpm
Tractor hitch
Rear TypeII (optional)
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type1000
 540/1000
Dimensions & Tires
Wheelbase91 inches
231 cm
Weight9360 to 9830 pounds
Front tire7.50-20
Rear tire23.1-30
Full dimensions and tires ...

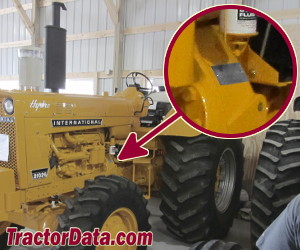

21026 Serial Number Location
International Harvester 21026 serial number location
Serial number plate on the left side of the hydrostatic housing, ahead of the batteries.
Electrical
Charging systemalternator generator
Charging amps32
Batteries2
Battery volts6
