International Harvester 21206

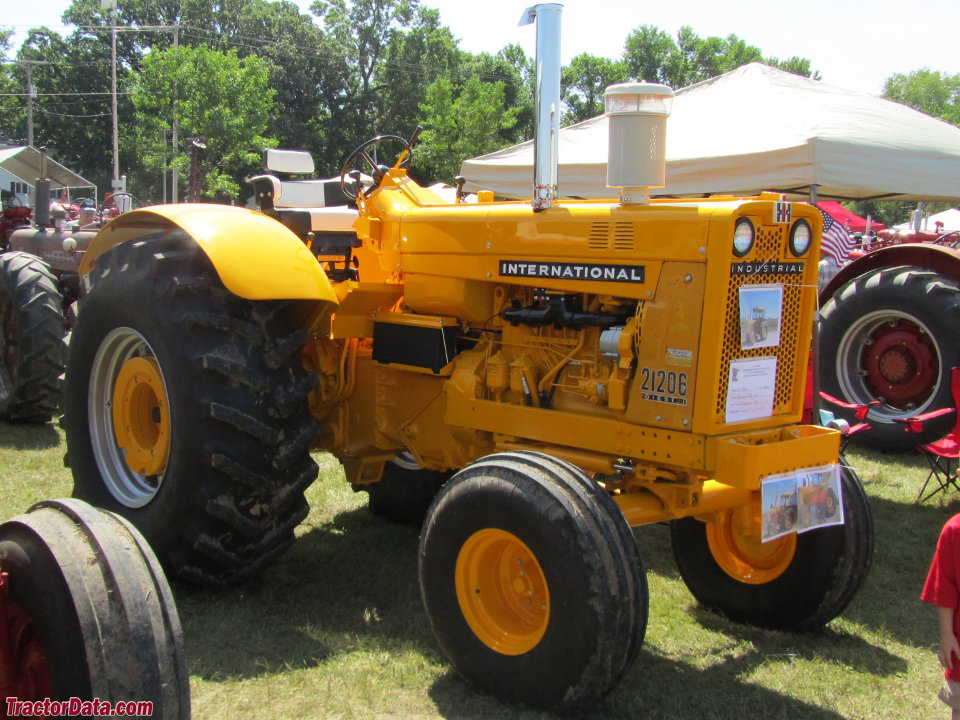

International Harvester 21206 industrial tractor photo
1965 - 1967
Industrial tractor
Production
ManufacturerInternational Harvester
TypeIndustrial tractor
International Harvester 21206 Engine
International Harvester 5.9L 6-cyl diesel
Engine details ...
International Harvester 21206 Transmissions
8-speed sliding sur gear
16-speed partial power shift
Transmission details ...
International Harvester 21206 Power
Engine (gross)126 hp
94.0 kW
Drawbar (claimed)99.6 hp
74.3 kW
PTO (claimed)112.6 hp
84.0 kW
Mechanical
Chassis4x2 2WD
 4x4 4WD
Steeringhydrostatic power
Brakeshydraulic dry disc
CabOpen operator station. Cab optional with air-conditioning.
Capacity
Fuel42 gal
159.0 L
Rear hubs6 qts (each)
5.7 L
Hydraulics
Pump flow9 gpm
34.1 lpm
 12 gpm
45.4 lpm
Total flow21 gpm
79.5 lpm
Tractor hitch
Rear TypeIII/II
Controllower-link torsion bar
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear RPM1000
Dimensions & Tires
Wheelbase91 inches
231 cm
Weight10,800 lbs
4898 kg
Front tire9.00-16
Rear tire23.1-30
Full dimensions and tires ...

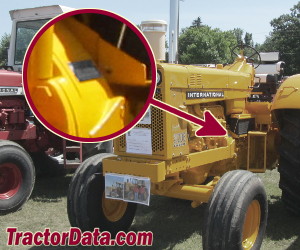

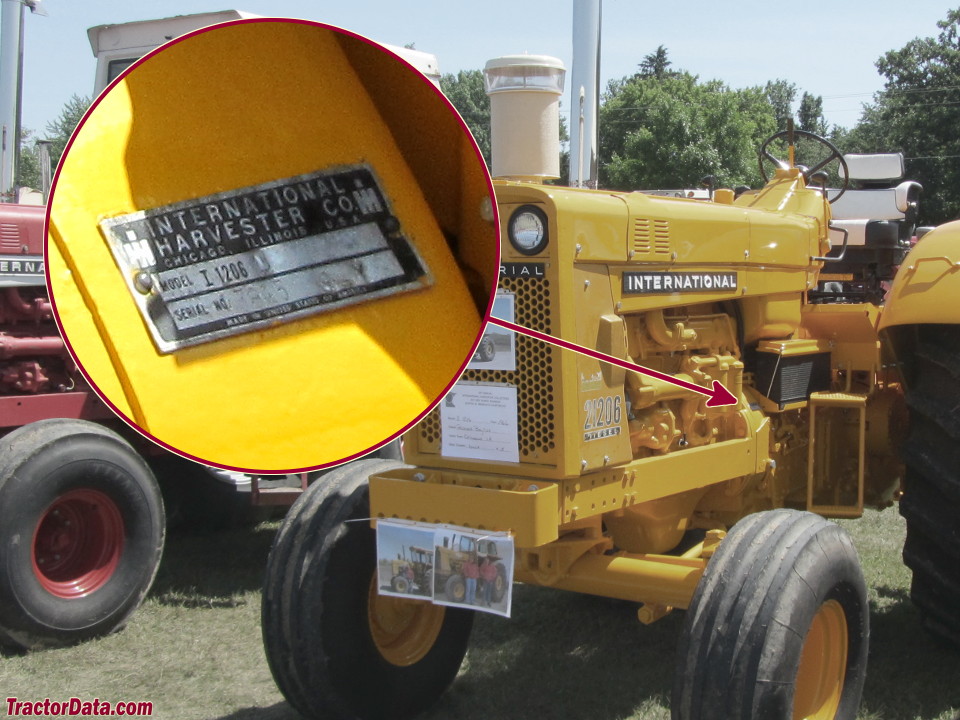

21206 Serial Location
International Harvester 21206 serial number location
Electrical
Charging systemalternator
Charging amps55
Batteries2
Battery volts6
Battery AH170
References
21206 reference literature
Buyer's Guide 1967 published by International Harvester
