International Harvester 500

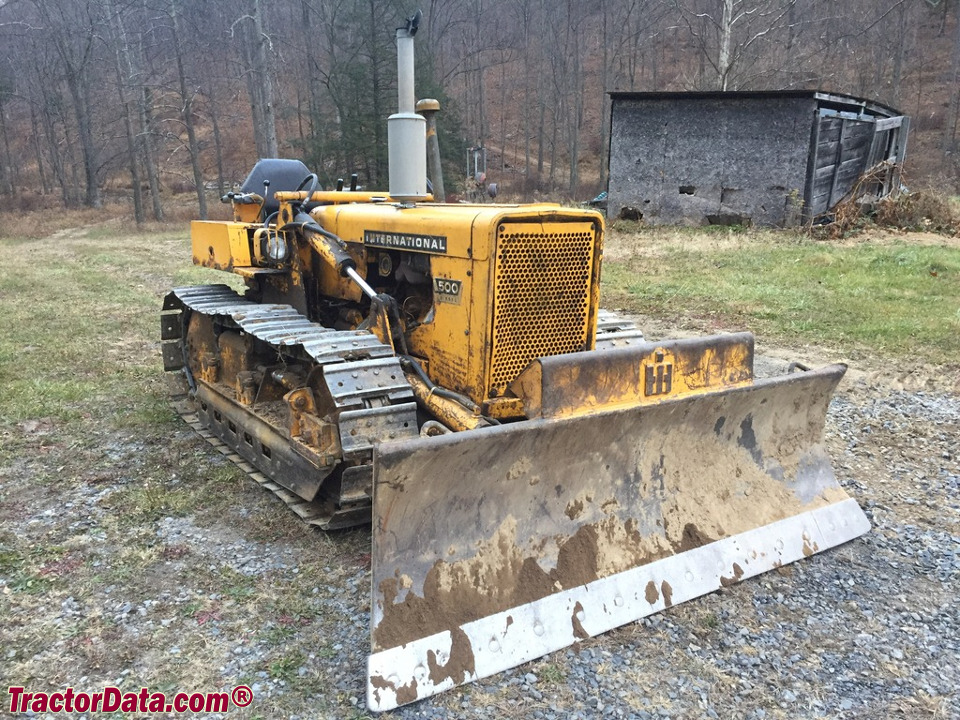

International Harvester 500 industrial tractor photo
1965 - 1969
Industrial Crawler tractor
Series map:
500
43.5hp
Production
ManufacturerInternational Harvester
Industrial Crawler tractor
Built in Hamilton, Ontario, Canada
Variants
500industrial crawler
500CLcrawler loader
500ag crawler
International Harvester 500 Engines
International Harvester 2.5L 4-cyl diesel
International Harvester 2.4L 4-cyl gasoline
Fuel tank15.9 gal
60.2 L
Engine details ...
International Harvester 500 Transmissions
8-speed partial power shift
5-speed unsynchronized gear
5-speed power shuttle
Transmission details ...
International Harvester 500 Power
Engine (gross)47 hp
35.0 kW
Engine (net)38 hp
28.3 kW
PTO (claimed)36 hp
26.8 kW
Mechanical
Drivecrawler
Steeringmechanical clutches
Mechanical contracting band brakes
Open operator station.
Hydraulics
Valves1 to 3
Pump flow7 gpm
26.5 lpm
 8 gpm (optional)
30.3 lpm
 9 gpm (optional)
34.1 lpm
 12 gpm (front optional)
45.4 lpm
 17 gpm (front optional)
64.3 lpm
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear PTOtransmission
Rear RPM1000
 540
Engine RPM980@2000
Dimensions & Tracks
Wheelbase67 inches
170 cm
Weight7050 to 7260 pounds
Tracks
Full dimensions and tracks ...
500 Serial Numbers
1965501
1966891
19672501
19683544
19694065
Final4584

FAQ: How to read a serial number table.
Electrical
Charging systemgenerator
Battery volts12
Battery AH40 (gas)
 96 (diesel)
References
500 references literature
Buyer's Guide 1967 published by International Harvester
