Ford 2110 LCG

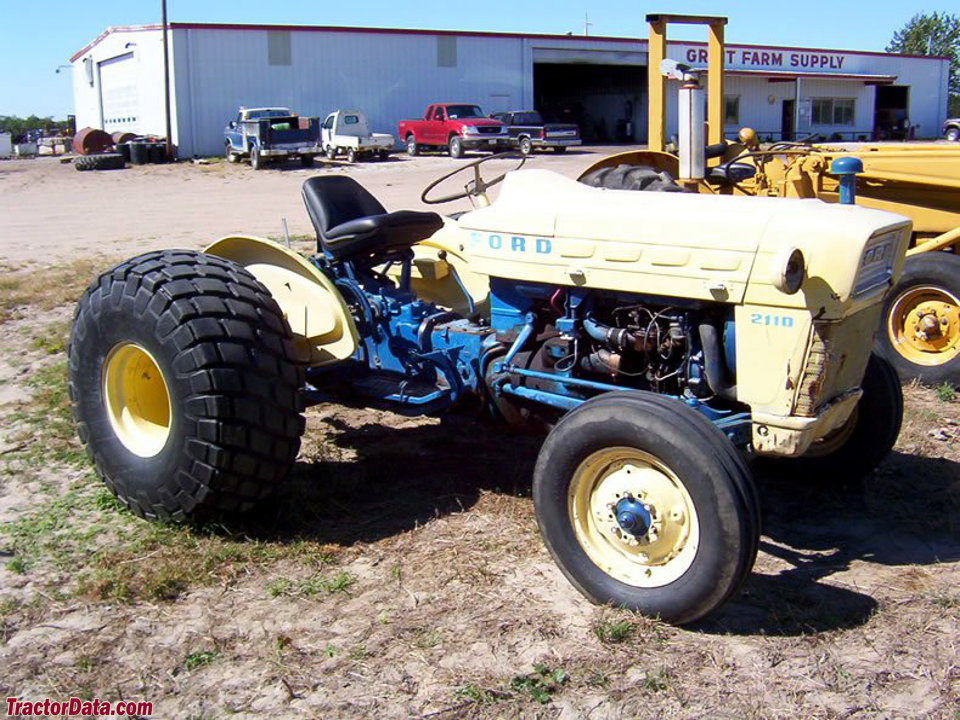

Ford 2110 LCG industrial tractor photo
1965 - 1975
Industrial tractor
Series map:
2110
4110
37.5hp
62.3hp
Production
ManufacturerFord
Industrial tractor
The Ford 2110 LCG was a highway mowing tractor, designed for stability on ditches and slopes. It is completely different than the later Ford 2110 compact utility tractor.
Variants
2110 Special3000 series engine
Ford 2110 Engines
Ford 2.6L 3-cyl gasoline
Ford 2.6L 3-cyl diesel
Engine details ...
Ford 2110 Transmissions
6-speed
8-speed
10-speed power shift
4-speed gear
Transmission details ...
Ford 2110 Power
Engine (gross)37.5 hp
28.0 kW
Engine (net)36 hp
26.8 kW
Engine39 hp
29.1 kW
PTO (claimed)30.5 hp
22.7 kW
Mechanical
Two-wheel drive
Final drivesbevel gear
Steeringmanual
Steeringpower OptOptional
Mechanical expanding shoe brakes
Open operator station.
Capacity
Fuel13 gal
49.2 L
Hydraulic system4 gal
15.1 L
Hydraulics
Typeopen center
Capacity4 gal
15.1 L
Pressure2500 psi
172.4 bar
Valves0 to 2
Steering flow3.5 gpm
13.2 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)1700 lbs
771 kg
Power Take-off (PTO)
Rear PTOlive (8-speed)
 independent (10-speed)
Rear PTO Type540
Dimensions & Tires
Wheelbase75.8 inches
192 cm
Weight3230 lbs
1465 kg
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemgenerator
Charging amps22
Battery volts12
Gasoline Battery AH80
References
2110 LCG references literature
2110 - 4110 LCG Tractors published in 1971, by Ford
Industrial Tractors and Equipment published in 1965, by Ford
New-Size Ford Tractors Loaders-Backhoes published in 1965
Tractors For Industrial Use published in 1967, by Ford
Industrial Tractors - Equipment published in 1968, by Ford
Industrial Tractors & Equipment Specifications 1969 published by Ford
Buyer's Guide '73 published in 1973, by Ford
Industrial Sales Handbook published in 1966, by Ford
2110 LCG manuals literature
Ford Tractor Operator's Manual 2000 3000 4000 5000 (SE3006) published in 1966
Operator's Manual 2000 3000 4000 5000 (SE 3225) published in 1968
Operator's Manual Supplement 2000 3000 4000 5000 (SE 3225-S2A) published in 1968
