Series: | 268 Hydro ← | 278 |
Transmissions overview | |
8-speed syncromesh | |
16-speed two-speed power shift |
Transmission | |
Type | syncromesh |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 36 qts 34.1 L |
Four synchronized gears in high, low, and reverse ranges. |

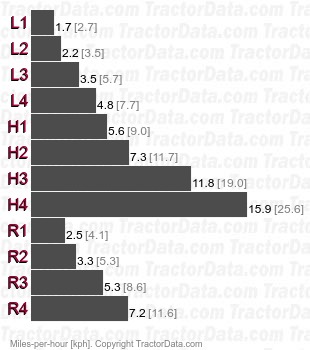

Speeds | |
With 15.8-38 rear tires. | |
Transmission | |
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Oil capacity | 36 qts 34.1 L |
The Torque Amplifier (TA) provides a power shift (clutchless, on the move) from direct drive (DD) to a lower TA speed. |

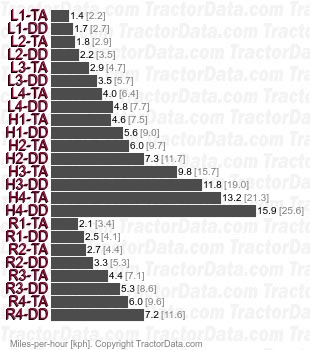

Speeds | |
With 15.8-38 rear tires. | |
