Tractors > Ford > 545D

Ford 545D



Ford 545D tractor photo
1993 - 1997
D Series
Industrial tractor
Series map:
445D
545D
62.0hp
66.0hp
Production
ManufacturerFord
Industrial tractor
Ford 545D Engine
Ford 3.3L 3-cyl diesel
Engine details ...
Ford 545D Transmissions
8-speed torque converter
4-speed torque converter
8-speed
Transmission details ...
Ford 545D Power
Engine (gross)66 hp
49.2 kW
Engine (net)62 hp
46.2 kW
Shuttle PTO (claimed)50 hp
37.3 kW
Gear PTO (claimed)54 hp
40.3 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet multi-disc brakes
Two-post ROPS. Optional four-post ROPS. Optional two-door cab with heater.
Photos
Ford 545D industrial loader tractor with ROPS.
Ford 545D photos...
Capacity
Fuel16 gal
60.6 L
Hydraulic system9.1 gal
34.4 L
Steering0.63 qts
0.6 L
Hydraulics
Typeopen center
Capacity9.1 gal
34.4 L
Pressure2450 psi
168.9 bar
Valves1 or 2 OptOptional
Pump flow26 gpm
98.4 lpm
Steering flow5.9 gpm
22.3 lpm
Steering cap.0.63 qts
0.6 L
Steering press.1600 psi
110.3 bar
Tractor hitch
Rear TypeII/I
Controlposition control and top-link draft sensing
Rear lift3080 lbs
1397 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Wheelbase81 inches
205 cm
Weight5015 to 10316 pounds
Full dimensions and tires ...
Ford 545D attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery CCA675
Battery volts12
Battery AH128
References

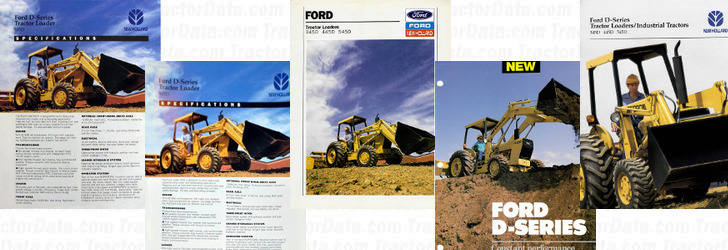

545D references literature
Tractor Loader 545D published in 1995, by Ford
Tractor Loader 545D published in 1996, by Ford
Tractor Loaders 345D 445D 545D published in 1992, by Ford
New D-Series published in 1993, by Ford
Ford D-Series Tractor Loaders/Industrial Tractors published in 1995, by New Holland
