Ford 545D Transmission


Ford 545D industrial tractor photo
1993 - 1997
D Series
Industrial tractor
Series map:
445D
545D
62.0hp
66.0hp
Transmissions overview
8-speed torque converter
4-speed torque converter
8-speed

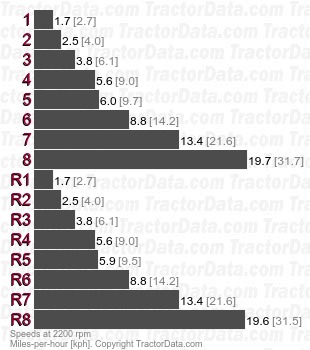

Transmission
Typetorque converter
Gears8 forward and reverse
Oil capacity17 qts
16.1 L
Speeds
Speed with 16.9-28 rear tires.
545D  torque converter speeds

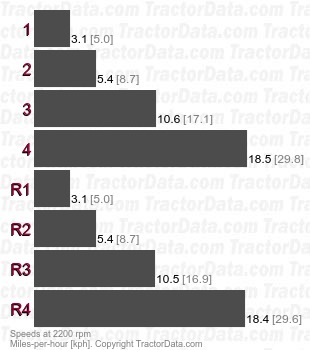

Transmission
Typetorque converter
Gears4 forward and reverse
Oil capacity17 qts
16.1 L
Speeds
Speed with 16.9-28 rear tires.
545D  torque converter speeds

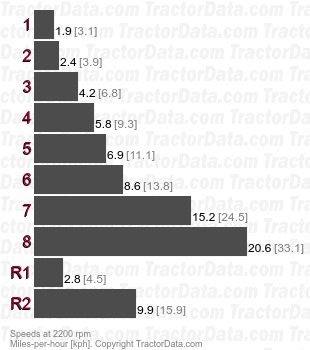

Transmission
Gears8 forward and 2 reverse
Oil capacity12.7 qts
12.0 L
Speeds
with 16.9-28 rear tires.
545D   speeds
