Fendt 516 Vario

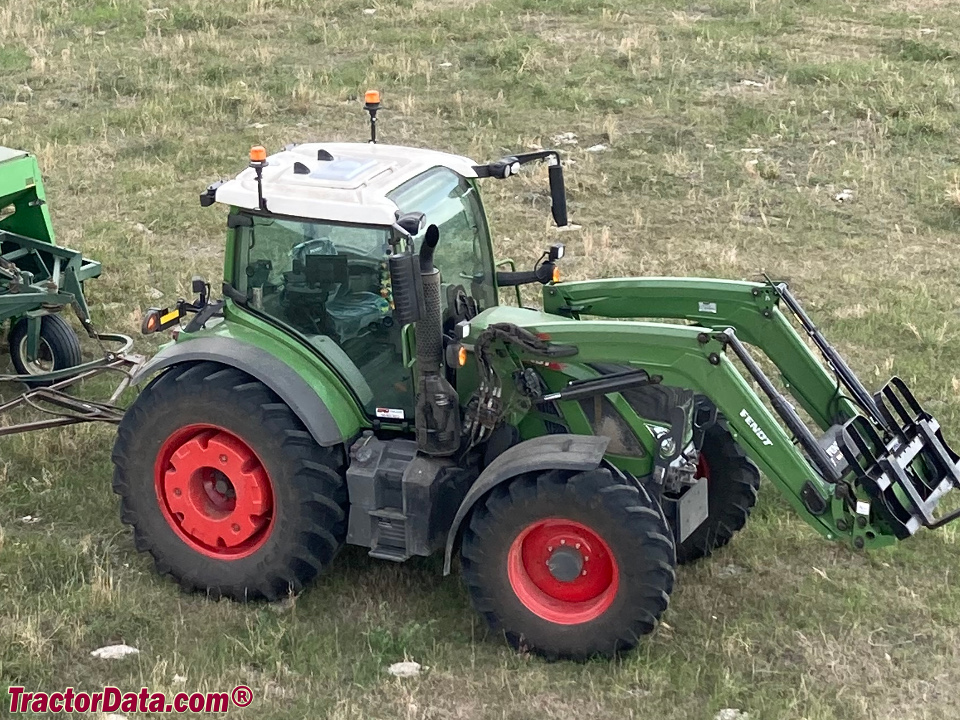

Fendt 516 Vario tractor photo
2012 -
500 Vario Series
Utility tractor
Series map:
514 Vario
516 Vario
110.0kw
120.0kw
Production
ManufacturerFendt (a part of AGCO)
Utility tractor
Fendt 516 Vario Engine
Deutz 4.0L 4-cyl diesel
Fuel tank78.7 gal
297.9 L
Exhaust fluid (DEF)8.2 gal
31.0 L
Engine details ...
Fendt 516 Vario Transmission
continuously variable transmission
Transmission details ...
Fendt 516 Vario Power
Engine (gross)160.9 hp
120.0 kW
Engine (net)147.5 hp
110.0 kW
Engine (max)169 hp
126.0 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Trailer brakespneumatic OptOptional
Cab standard with air-conditioning.
Photos
No photos of the Fendt 516 Vario are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeload sensing
Pressure2900 psi
200.0 bar
Rear valves4 or 5
Front valves1 or 2
Pump flow19.8 gpm
74.9 lpm
 29.1 gpmOptOptional
110.1 lpm
 41.7 gpmOptOptional
157.8 lpm
Tractor hitch
Controlposition and draft control
Rear lift17152 lbs
7780 kg
Front lift7540 lbs
3420 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E/1000
 540E/1000/1000E
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
Wheelbase100.8 inches
256 cm
Weight14110 lbs
6400 kg
Front tire540/65R28
Rear tire650/65R38
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
516 Vario references literature
500 Vario published in 2015, by Fendt
500 Vario published in 2019, by Fendt
