Massey Ferguson 1835M

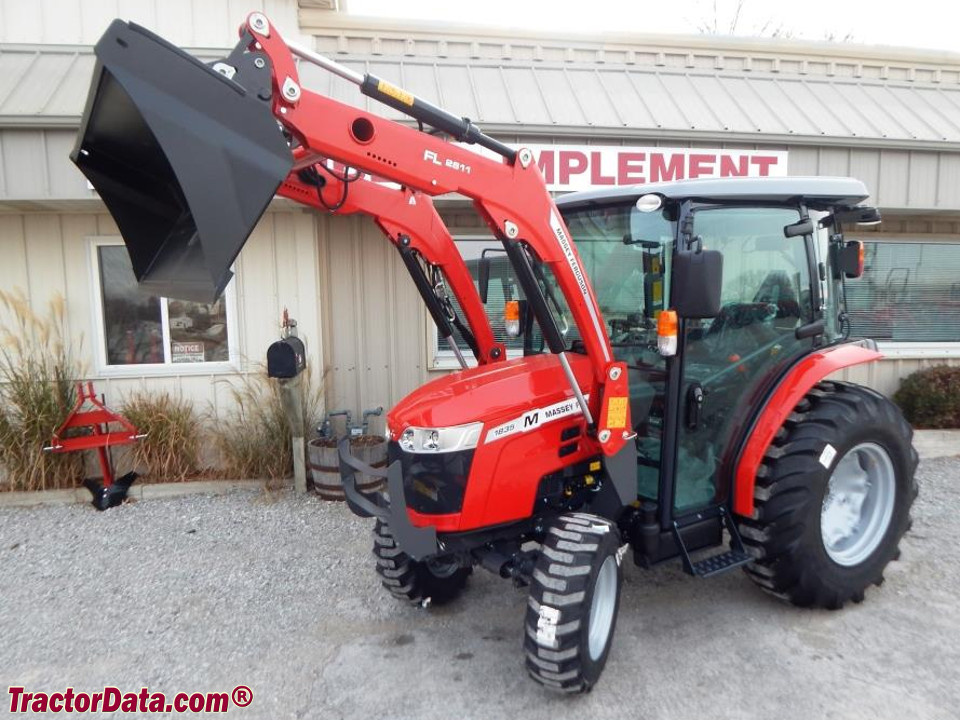

Massey Ferguson 1835M tractor photo
2020 -
1800M Series
Compact Utility tractor
Series:1835M1840M
Production
Manufacturer:Massey Ferguson (a part of AGCO)
Type:Compact Utility tractor
Original price:$24,055 (2020 gear ROPS )
Original price:$32,774 (2020 hydrostatic Cab )
Massey Ferguson 1835M Power
Engine:36.2 hp
27.0 kW
Gear PTO (claimed):27.5 hp
20.5 kW
Hydro PTO (claimed):25.7 hp
19.2 kW
Massey Ferguson 1835M Engine
Iseki 1.8L 3-cyl diesel
Fuel tank:10.6 gal
40.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:12-speed power shuttle
 hydrostatic
Transmission details ...
Photos
No photos of the Massey Ferguson 1835M are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Pump flow:12.6 gpm
47.7 lpm
Steering flow:7 gpm
26.5 lpm
Tractor hitch
Rear Type:I
Control:position control with optional draft control
Rear lift (at ends):2800 lbs
1270 kg
Rear lift (at 24"/610mm):2535 lbs
1149 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent*Optional
Mid RPM:1916
Dimensions & Tires
Weight:3472 to 3858 pounds
Front tire:8-16
Rear tire:13.6-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
