Kubota KL345

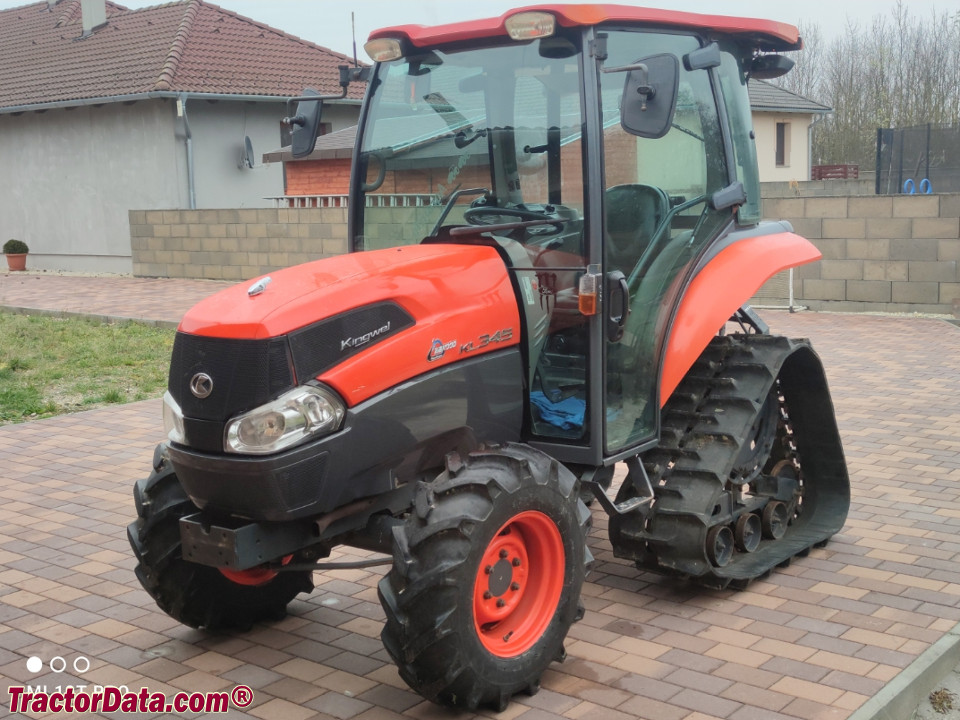

Kubota KL345 tractor photo
2008 - 2009
KL Series
Compact Utility tractor
Series map:
KL315
KL345
KL385
22.8kw
25.0kw
27.9kw
Production
ManufacturerKubota
Compact Utility tractor
Variants
KL345standard
KL345Hhigh-speed
Kubota KL345 Engine
Kubota 1.8L 3-cyl diesel
Fuel tank10.6 gal
40.1 L
Engine details ...
Kubota KL345 Power
Engine33.5 hp
25.0 kW
Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM561@2700
791@2700
980@2700
1307@2700
-980@2700
Dimensions & Tires
Wheelbase68.7 inches
174 cm
Weight2932 to 3406 pounds
Front tire8-16
Rear tire13.6-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
KL345 references literature
Operator Manual KL (T01850-1920-1)
