Kubota GB20
| | 1997 - 2001 |
| GB Series | | Sub-Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Sub-Compact Utility tractor
|
| Variants |
| GB20F: | Glideshift
|
| Kubota GB20 Power |
| Engine: | 19.7 hp
14.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 6-speed gear
|
| | 18-speed
|
 Transmission details ... |
| Tractor hitch |
| Rear Type: | 0
|
| Control: | position control
|
| Power Take-off (PTO) |
| Rear RPM: | 451/769/1207 (1.375)
|
| GB20 Serial Numbers |
| Location: | Serial number tag on the right side of the tractor frame, above the front axle.
|
photo of GB20 serial number
|
| Electrical |
| Ground: | electric
|
| Battery volts: | 12
|
| Page information |
| Last update: | May 6, 2020
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

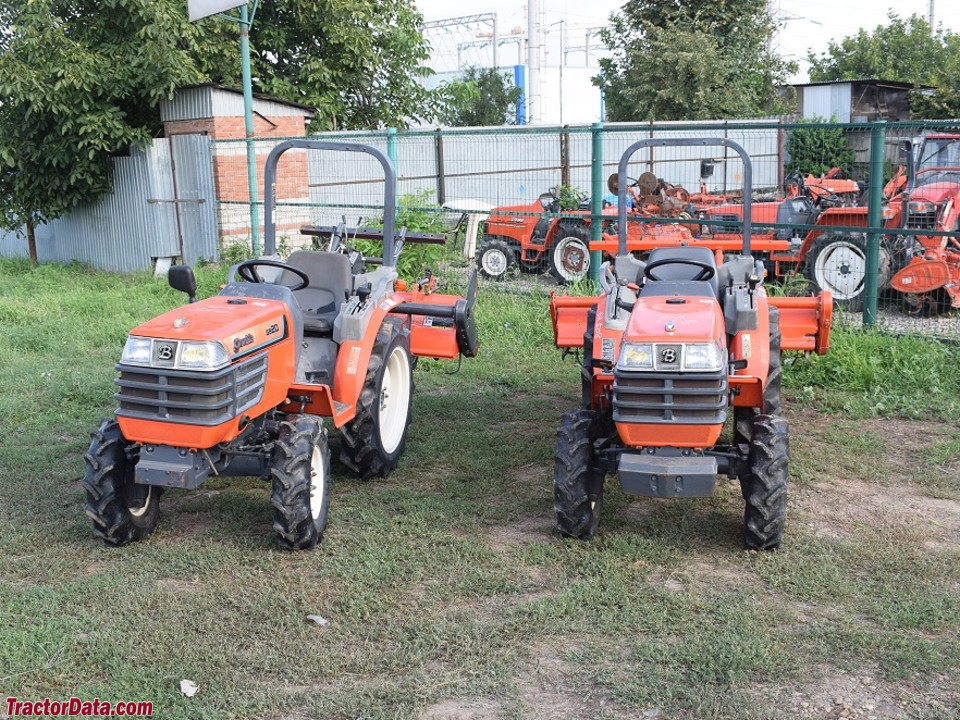

Kubota GB20 photos...
