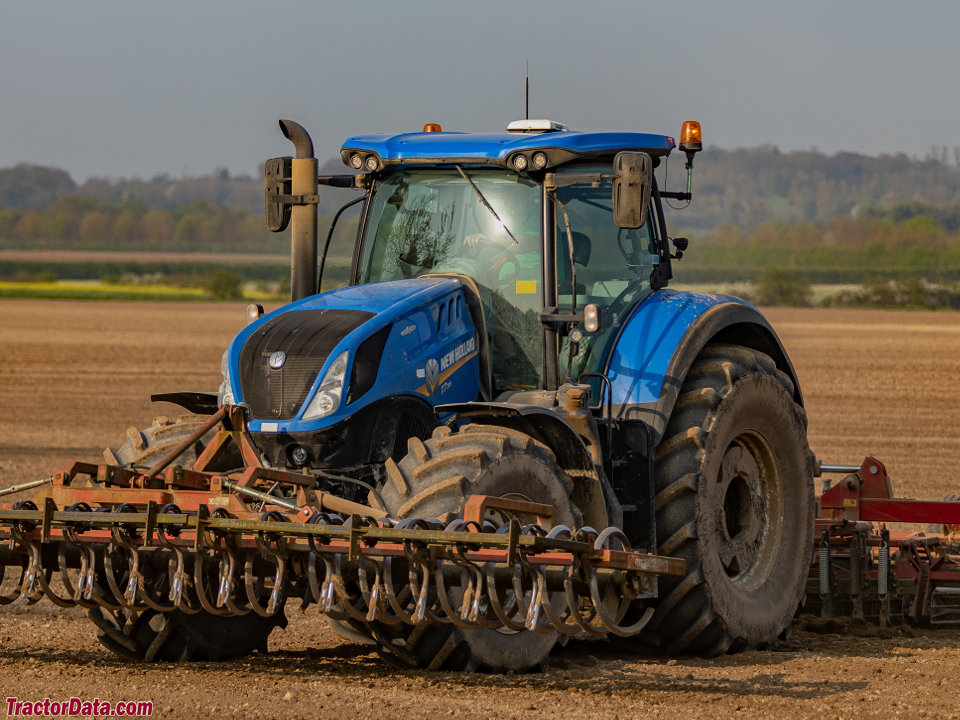

New Holland T7.315
|
|
| Series: | T7.290 ← | T7.315 |
| Production | |
| Manufacturer: | New Holland (a part of CNH) |
| Type: | Row-Crop tractor |
| Original price: | $286,404 (2017 ) |
| New Holland T7.315 Power | |
| Engine (gross): | 300 hp 223.7 kW |
| Engine (max): | 313 hp 233.4 kW |
| PTO (claimed): | 270 hp 201.3 kW |
| Drawbar (tested): | 226.5 hp 168.9 kW |
| PTO (tested): | 290.7 hp 216.8 kW |
| New Holland T7.315 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank: | 166 gal 628.3 L |
| Exhaust fluid (DEF): | 25 gal 94.6 L |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. Optional Comfort Ride cab suspension. |
| Transmission: | continuously-variable transmission (CVT) |
 Transmission details ... | |
| Photos | |
 | |
 New Holland T7.315 photos... | |
| Hydraulics | |
| Type: | closed center load-sensing |
| Rear valves: | 4 or 5 |
| Mid valves: | 3*Optional |
| Pump flow: | 43.5 gpm 164.6 lpm |
| 58 gpm 219.5 lpm *Optional MegaFlow | |
| Tractor hitch | |
| Rear Type: | III |
| IVN*Optional | |
| Control: | electronic lower-link draft control |
| Rear lift (at 24"/610mm): | 19180 lbs 8700 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@1930 540E@1598 1000@1853 1000E@1583 |
| Front PTO: | independent*Optional |
| Front RPM: | 1000 |
| Dimensions & Tires | |
| Wheelbase: | 117.9 inches 299 cm |
| Weight: | 22707 lbs 10299 kg |
| Front tire: | 420/85R24 |
| Rear tire: | 480/80R50 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 150 |
| 200*Optional | |
| Battery volts: | 12 |
