| | 1965 - 1969 |
| 50 Series | | Utility tractor |
|
| Transmissions overview |
| 12-speed partial power shift |
| 6-speed unsynchronized gear |
| Transmission |
| Transmission: | Hydra-Power
|
| Type: | partial power shift
|
| Gears: | 12 forward and 4 reverse
|
| Clutch: | 279.4mm dry disc
|
| Oil capacity: | 32 qts
30.3 L
|
| The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range. |

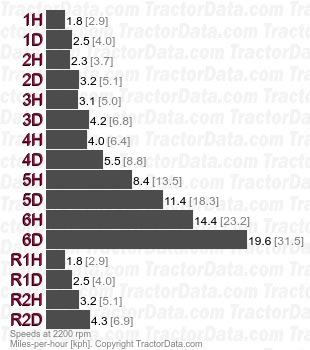

| Speeds |
| With 14.9-28 rear tires. |
|
| Transmission |
| Type: | unsynchronized gear
|
| Gears: | 6 forward and 2 reverse
|
| Clutch: | 279.4mm dry disc
|
| Oil capacity: | 32 qts
30.3 L
|

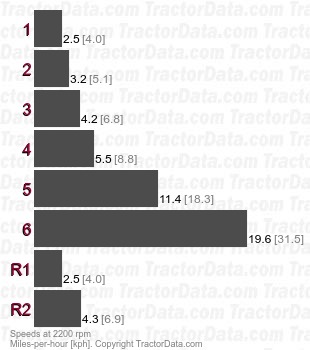

| Speeds |
| With 14.9-28 rear tires. |
|
