Tractors > Mahindra > 2540

Mahindra 2540

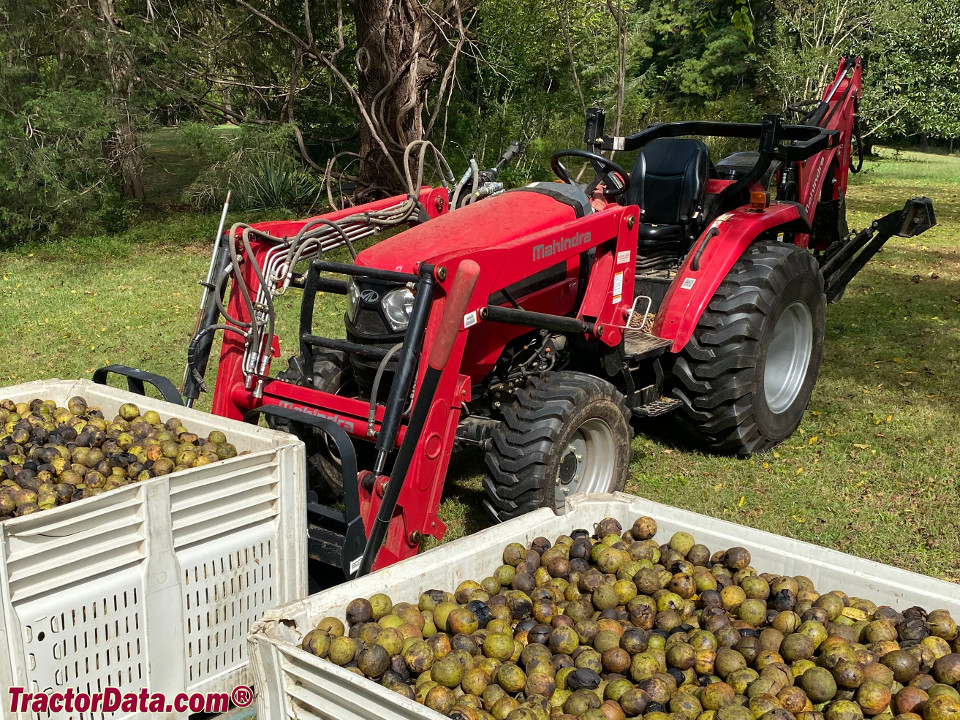

Mahindra 2540 tractor photo
2016 -    2500 Series
Compact Utility tractor
Series next:Mahindra 2555
Series back:Mahindra 2538






Production:

Distributor:Mahindra
Manufacturer:TYM
Original price (USD)
   $23,220 (2016 )


Mahindra 2540 Engine:

   Mahindra 2.7L 4-cyl diesel
full engine details ...


Capacity:

Fuel:16 gal [60.6 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift:2646 lbs [1200 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2650


Dimensions & Tires:

Weight:3285 lbs [1490 kg]
Front tire:8.3x16
Rear tire:12.4x24
full dimensions and tires ...


Mahindra 2540 attachments:

 front-end loader
 backhoe
all 2540 attachments ...


2540 Serial Numbers:


- Serial numbers unknown -



Mahindra 2540 Power:

Engine:40 hp [29.8 kW]
PTO (claimed):35 hp [26.1 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Rear valves:1 or 2
Pump flow:8.2 gpm [31.0 lpm]
Steering flow:4.5 gpm [17.0 lpm]


Electrical:

Charging system:alternator
Charging amps:45
Charging volts:12


Battery:

Number:1
Volts:12
Amp-hours:96
