Mahindra 2538

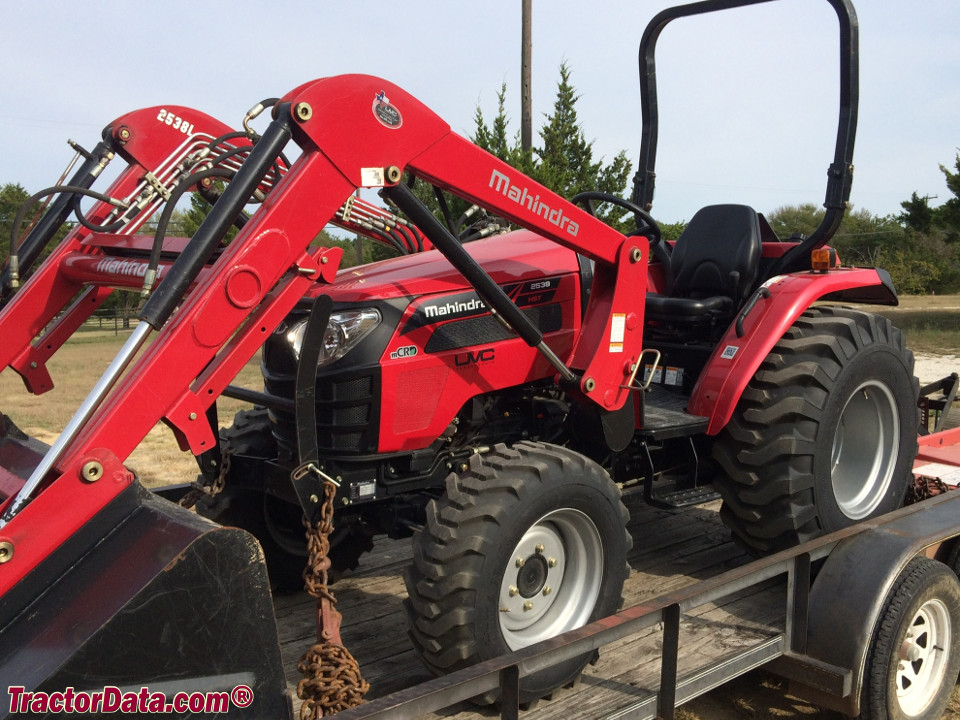

Mahindra 2538 tractor photo
2016 -    2500 Series
Compact Utility tractor
Series next:Mahindra 2540






Production:

Distributor:Mahindra
Manufacturer:TYM
Original price (USD)
   $20,790 (2016 ROPS )
   $28,220 (2016 Cab )


Mahindra 2538 Engine:

   Mahindra 2.7L 4-cyl diesel
full engine details ...


Capacity:

Fuel:9 gal [34.1 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift:2646 lbs [1200 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2400


Dimensions & Tires:

Weight:3130 to 3351 pounds
Front tire:7-16
Rear tire:11.2-24
full dimensions and tires ...


Mahindra 2538 attachments:

 front-end loader
 backhoe
all 2538 attachments ...


2538 Serial Numbers:


- Serial numbers unknown -



Mahindra 2538 Power:

Engine:37.4 hp [27.9 kW]
PTO (claimed):31 hp [23.1 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Rear valves:1 or 2
Pump flow:7.6 gpm [28.8 lpm]
Steering flow:4.1 gpm [15.5 lpm]


Electrical:

Charging system:alternator
ROPS Charging amps:45
Cab Charging amps:90
Charging volts:12


Battery:

Number:1
Cold-cranking amps:800
Volts:12
Amp-hours:80
